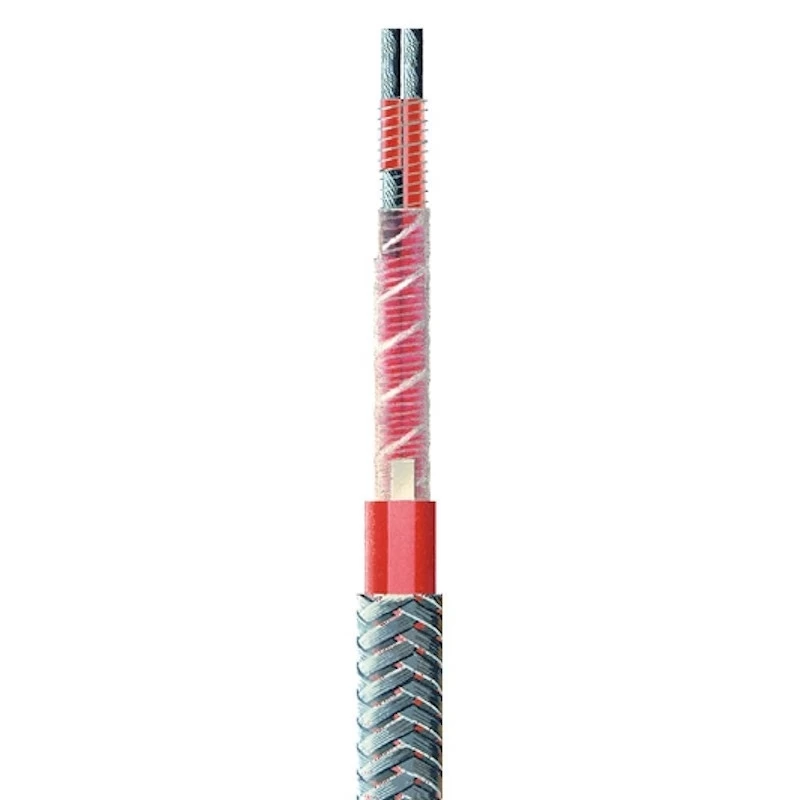

12 W/ft General Purpose Constant-Wattage Heating Cable, Copper Braid, 120V

19BN14 is a general purpose constant wattage heating cable with a tinned copper metal braid. This cable operates at 120 VAC with a cable type of 12 watts/ft, and can be cut to preferred length at the job site. The maximum exposure temperature is 400&deg F (204&deg C). Product is moisture, chemical, flame, and radiation resistant, making it great for temperature applications such as food and chemical processing, water lines, fire protection systems, and more. Other cable types and voltages available upon request. This product requires a temperature controller for safe operation.

Key benefits:

• Power remains constant regardless of temperature
• Dimensions: 0.2″ x 0.3″ (5mm x 8mm)
• 40lb (18kg) per 500-foot (152m) spool
• 12 W/ft (39 W/m)
• 12AWG bus wires
• Ideal for long runs
• Tension wrapping holds resistance wire in place, even under extreme bending
• 1 year warranty
• Proudly Made in the USA

FM approved for use in ordinary locations and the following hazardous locations:

• CID2, Groups B, C, D
• CIID2, Groups F, G
• CIIID2

CSA Approved for use in ordinary locations only

Applications include:

• Mid range process temperature control for food and chemical processing facilities
• Hot water lines
• Fire protection systems
• Fuel oil
• Condensate return
• Lines periodically purged with 250 psig steam
