16 Gallon Tight Head Steel Drum, UN Rated, 2″ & 3/4″ Fittings, Lined

Original price was: $133.60.Current price is: $93.52.

Satisfaction Guaranteed

Reliable Payments for Reliable Shopping

Your happiness, our mission.

100% High-Quality Guarantee

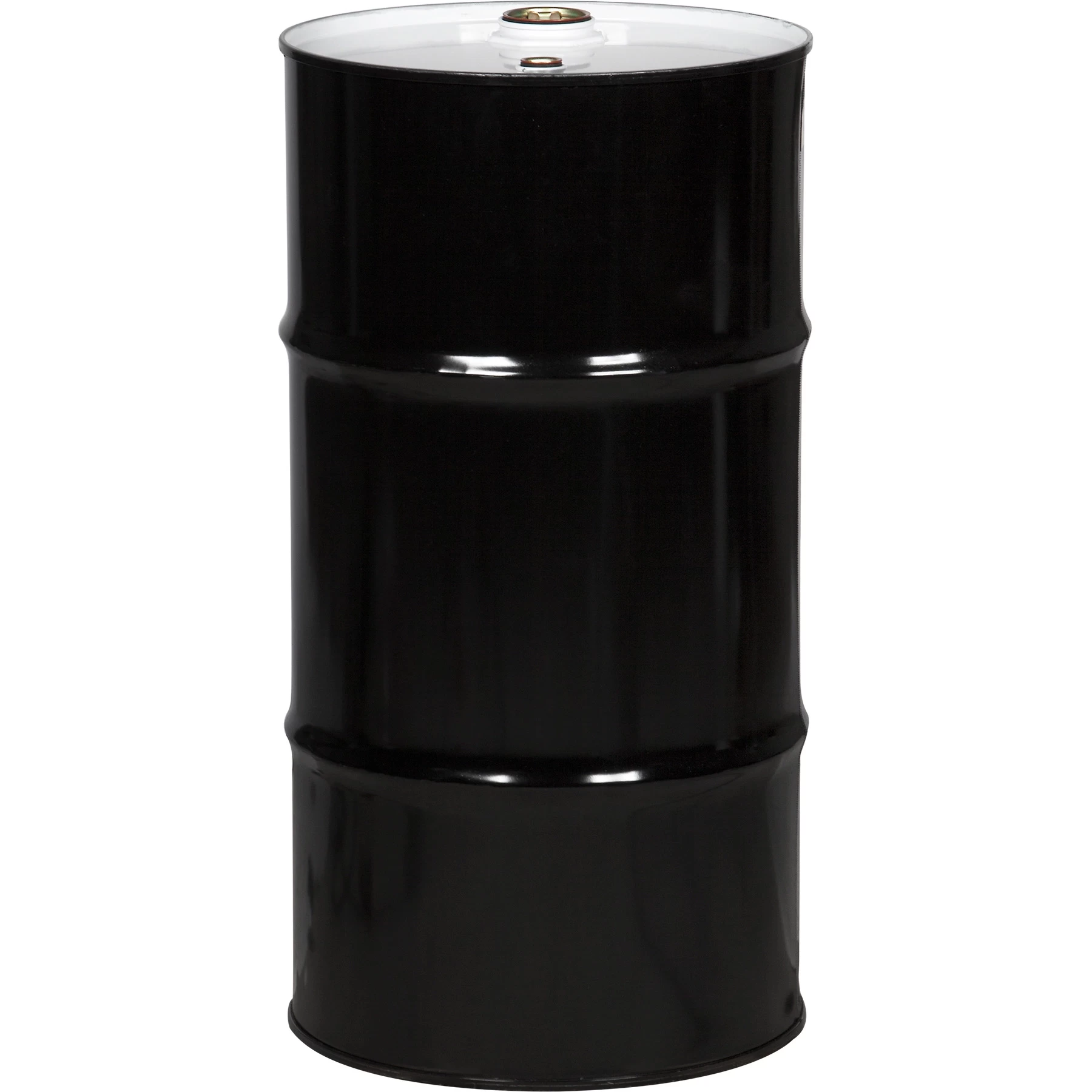

The 26WT16 is a new UN Rated black 16 gallon tight head (closed top) steel drum with an epoxy-phenolic lining. This steel drum has a white closed cover with 2″ NPT and 3/4″ NPT Tri-Sure style plug & flange fittings. UN Specifications include a rating of UN1A1/X1.4/250 for liquids. It meets strict wall thickness requirements, 0.9/0.9/0.9 (top/body/bottom) 20/20/20 gauge ASTM grade carbon steel, and is tested for strength and durability.

Key benefits:

Ideal for storage and transportation purposes
Tight-head (closed top) containers (1A1 drums) have a non-removable top

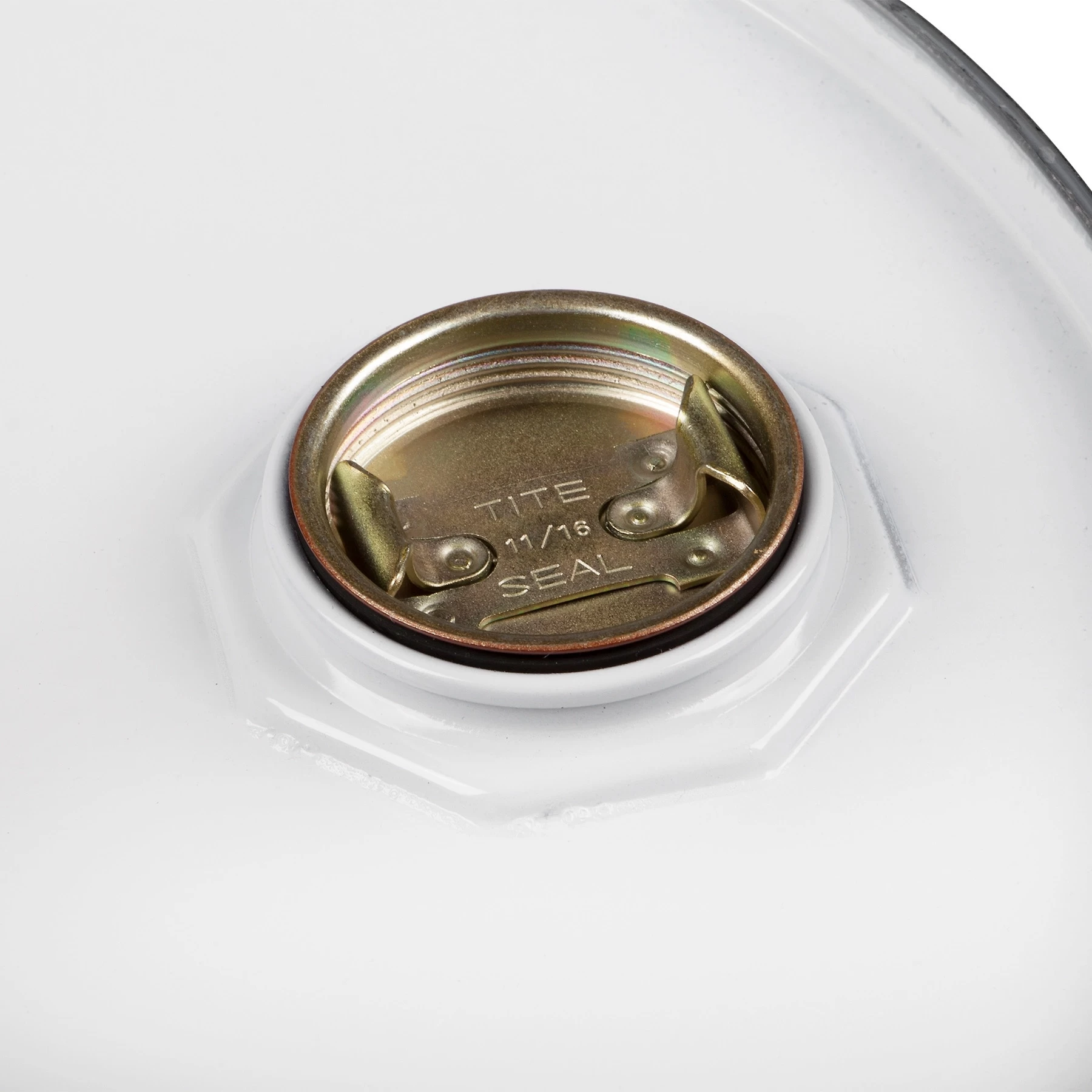

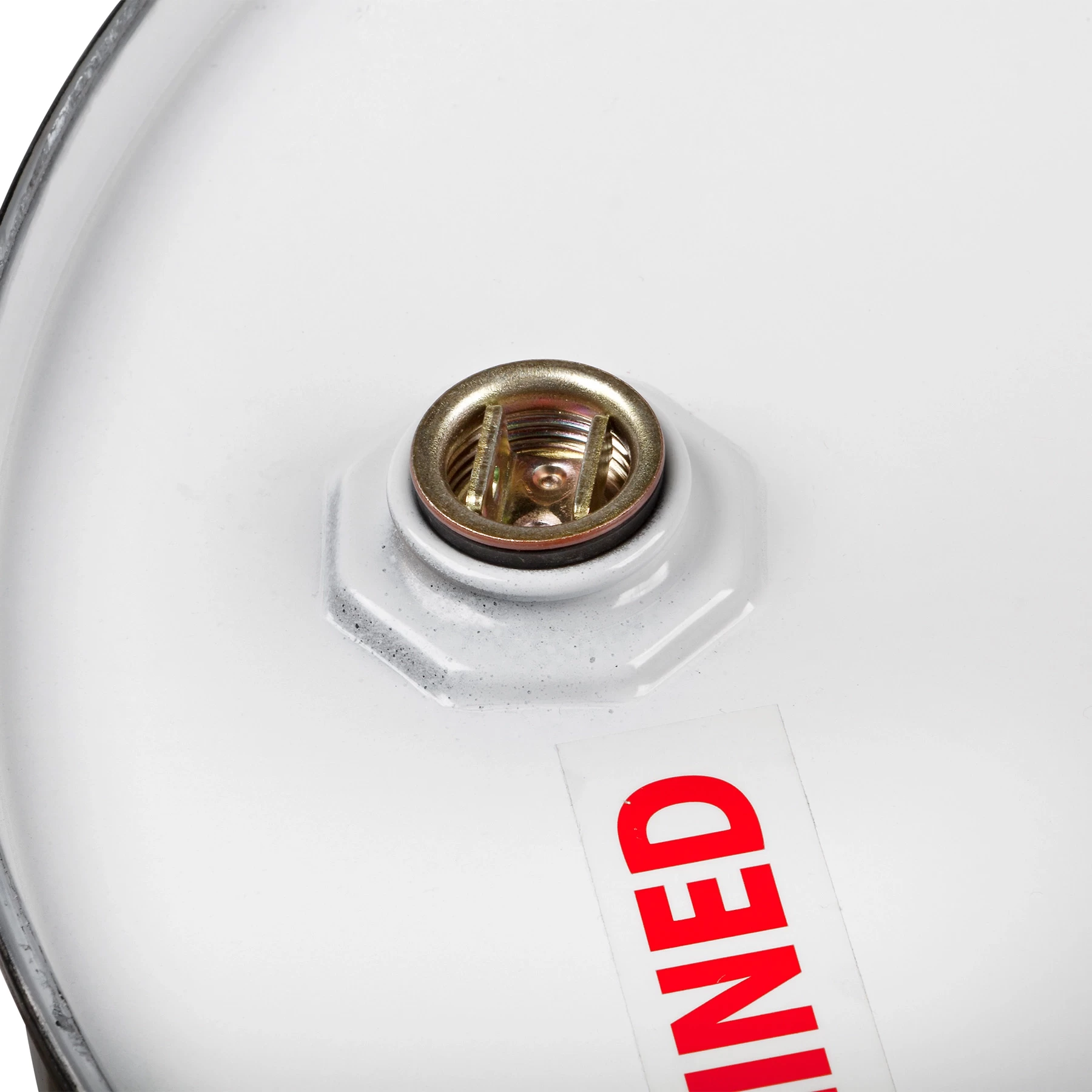

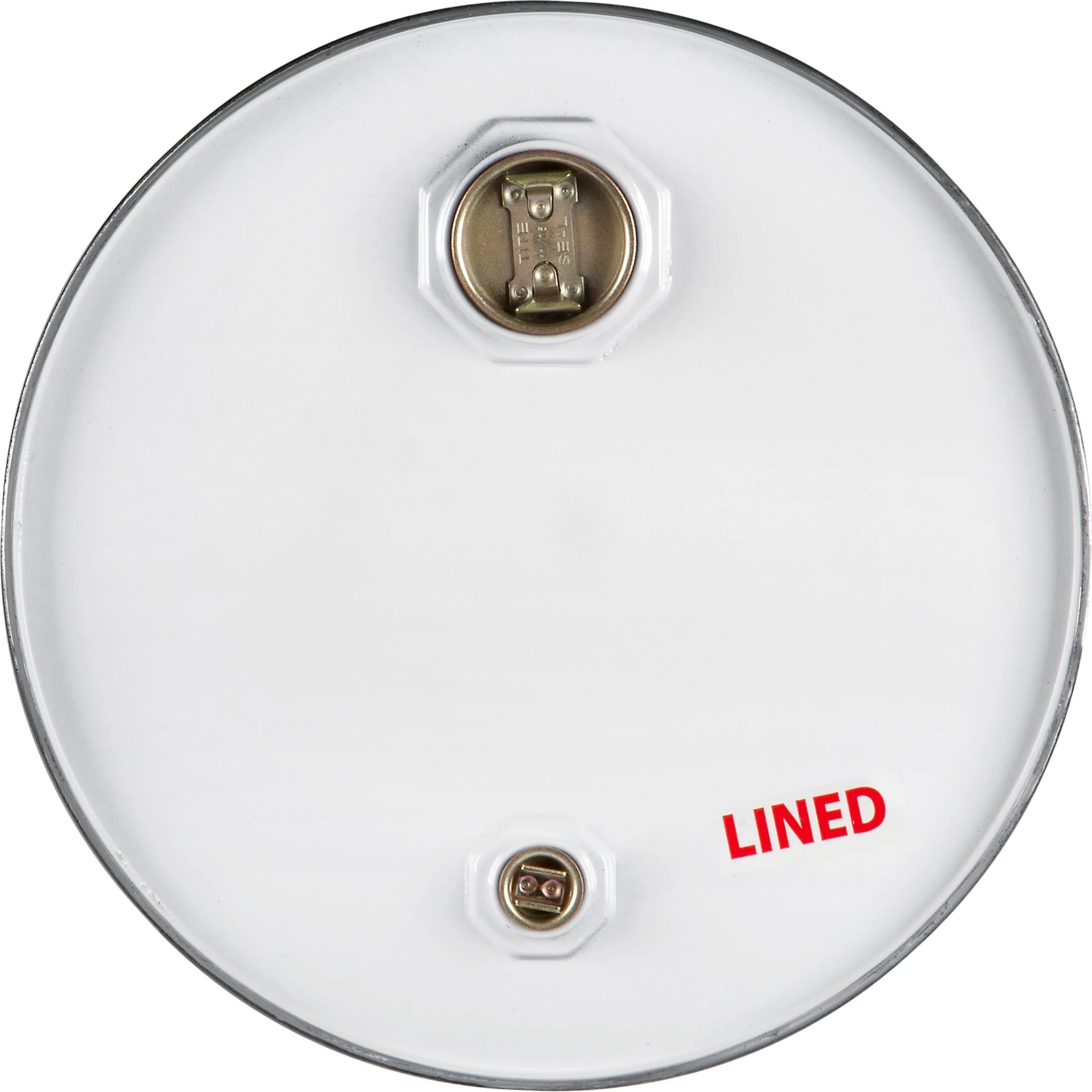

Access to the container is via 2″ and 3/4″ plugs in the top of the container
Epoxy-phenolic linings have been designed to provide outstanding chemical resistance in a pH range of 7.0 – 9.0
Proudly Made in the USA

Downloads:

Specification Sheet

Material:

Carbon steel (CS) is metal alloy that is made of iron and carbon. It is known as a cost-effective alloying material. There are four types of carbon steel that vary in strength level: low carbon steel, medium carbon steel, high carbon steel, and very high carbon steel. Engine parts, car body panels, and select knives are made of carbon steel. The Cary Company also has carbon steel IBC tanks, filter vessels, and drums that work well with many liquids.

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility. The Cary Company does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer’s selection and use of containers, container and label dimensions, and/or closures supplied by us.

Additional Information

More Information
Capacity	16 gal.
Color	White/Black
Material	Carbon Steel
Dimensions	14” Dia. x 26” H (inside) / 14.3” Dia. x 27.25” H (outside)
Weight	17 lbs.
Pallet Pack	27 ea.
Country of Manufacture	United States
Model	CQ1603L
Condition	New
Closure	Tight Head (Closed)
Lining	Epoxy Lining
Steel Thickness	0.9/0.9/0.9 (Top/Body/Bottom)
Steel Gauge	20/20/20 (Top/Body/Bottom)
Fittings	2″ NPT & 3/4″ NPT
Gasket	Buna Gasket
UN Rating Liquid	UN1A1/X1.4/250
