18 W/ft High-Temperature Constant-Wattage Heating Cable, Copper Braid, 240V

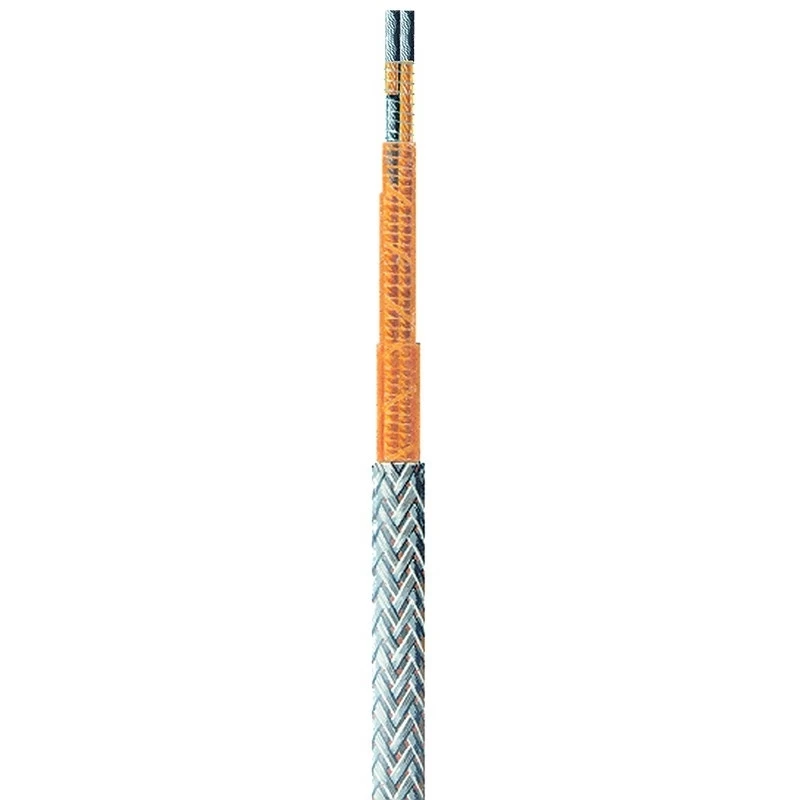

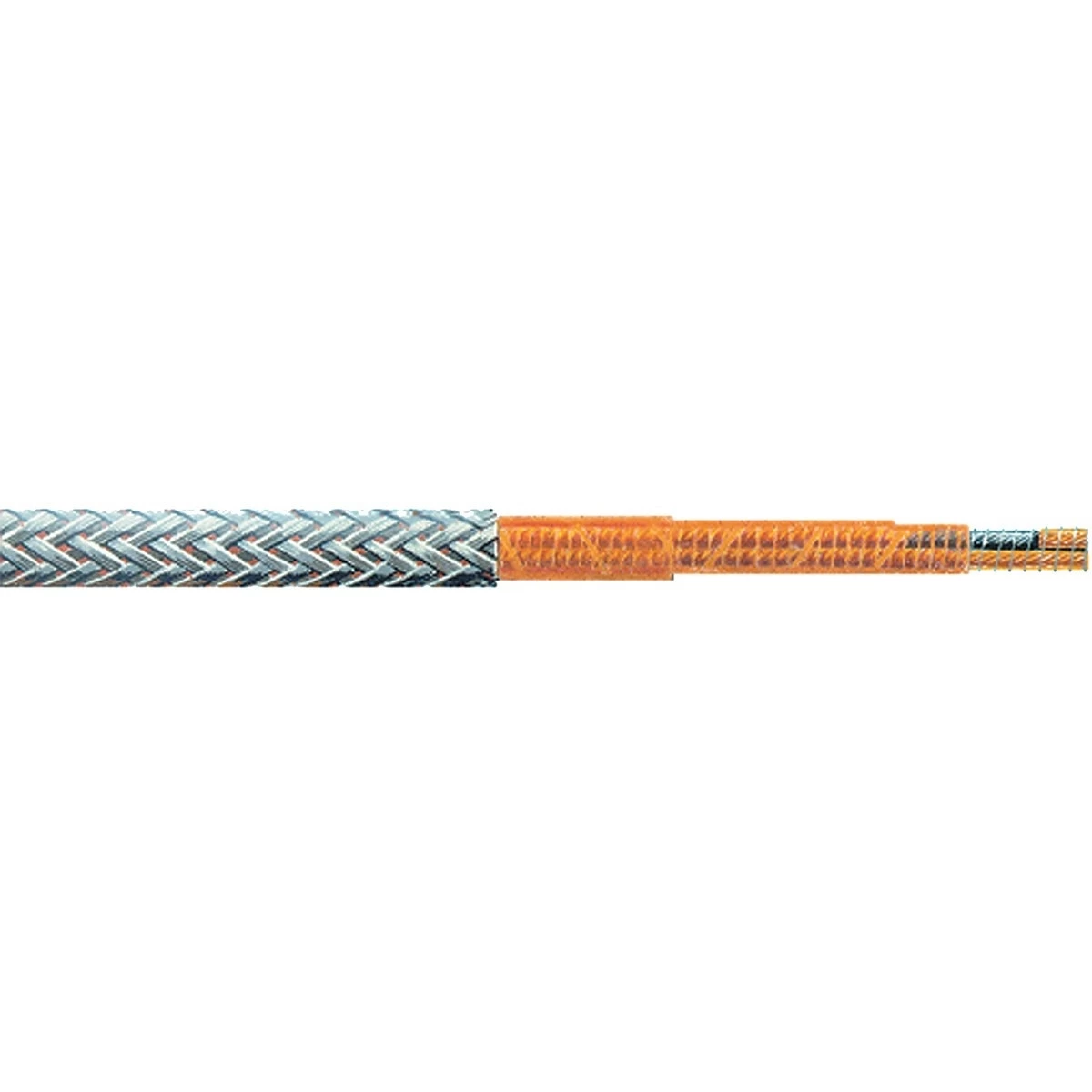

19BN71 is a high-temperature constant wattage heating cable with a tinned copper overbraid. This cable operates at 240 VAC with a cable type of 18 watts/ft, and can be cut to preferred length at the job site. The maximum exposure temperature is 500&deg F (260&deg C). Product is moisture, chemical, flame, and radiation resistant, making it great for temperature applications such as asphalt lines, viscosity control, nuclear environments, and more. This product requires a temperature controller for safe operation.

Key benefits:

• Power remains constant regardless of temperature
• Dimensions: 0.15″ x 0.25″ (4mm x 6mm)
• 30lb (14kg) per 500-foot (152m) spool
• 18 W/ft (59 W/m)
• 12AWG bus wires
• Ideal for long runs
• Tension wrapping holds resistance wire in place, even under extreme bending
• 1 year warranty
• Proudly Made in the USA

FM approved for ordinary locations and the following hazardous locations:

• CID2, Groups B, C, D
• CIID2, Groups F, G
• CIIID2

Applications include:

• Viscosity control
• Asphalt lines
• Heavy oil lines
• Nuclear environments
• Locations where halogens are not permitted
• Process lines subject to high pressure steam blow down
