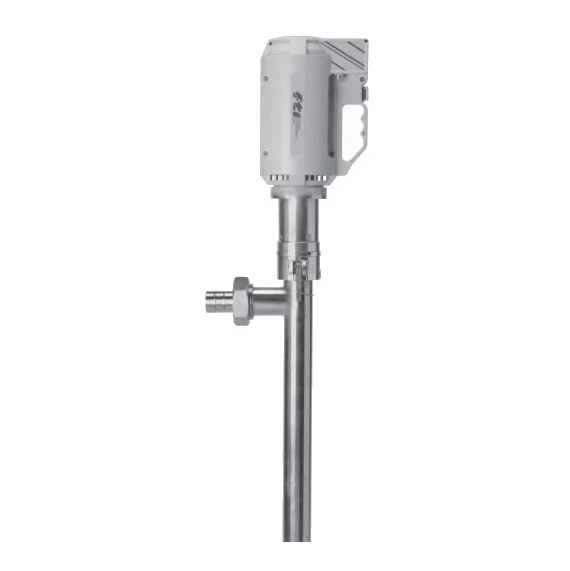

30 Gallon Drum Pump W/27″ Stainless Steel Tube, 1-1/2 HP TEFC Motor, 30,000 Cps, 7 Gpm (HVDP Series)

This is a 1.5 HP totally enclosed fan cooled (TEFC) motor drum pump with a 2″ Dia. x 27″ stainless steel tube and a max flow of 7 gpm and max viscosity of 30,000 cps. This low reduction 30 gallon drum pump is ideal for transferring high viscosity materials up to 180° F as it features a progressive cavity design. A planetary gear set reducer allows this pump to provide a smooth and non-pulsating flow. Typical applications include paints, adhesives, oils, etc. in the chemical and coatings industries. The max specific gravity is 1.80.

The TEFC motor offers increased protection against dirt and moisture compared to open electric motors as it does not allow outside air to circulate freely throughout the interior of the motor. These motors tend to have a longer lifespan compared to open drip proof (ODP) motors. Drum pumps are ergonomic as they can eliminate the need to lift containers during liquid transfer. The 316 stainless steel tube is 27″ for use with 30 gallon drums, carboys and other similar-sized containers. Stainless steel is ideal for more flammable such as solvents compared to plastic alternatives. The discharge connection is larger than traditional drum pumps and is a 2″ hose barb for high viscosity liquids. This drum pump offers quick disassembly for ease of cleaning due to its unique camlock feature.

Key benefits:

• Totally enclosed fan cooled (TEFC) motor
• 316 stainless steel tube
• Includes 12′ (3.5m) heavy duty cord, circuit, internal cooling fan and built-in on/off switch
• 5:1 speed reducer
• Buna stator material
• For use with containers with less than 27″ depth
• Suitable for high viscosity liquids
• For use up to 180° F | 82° C
• Max flow 7 gpm
