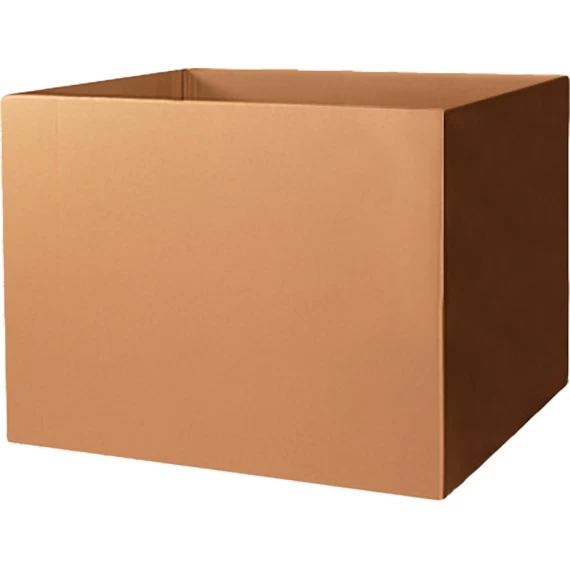

This triple-wall corrugated container offers three layers of corrugated fluting sandwiched between four sheets of fiberboard. With an assembled size of 48″ L x 40″ W x 24″ H, this box offers increased strength for greater weight load capacity over comparably sized single- and double-wall gaylord containers. This carton makes a great master pack for holding smaller cartons as well as for larger, odd-sized items like exercise equipment and large machines. These boxes are also useful in manufacturing environments to ship and store dry materials such as cloth, plastic pellets, corn, flour and more. Pair this container with its 49-1/4″ Lx 41-1/4″ W x 4″ H corrugated lid to create the ideal package for your application.

Key benefits:

Can reduce the overall weight of packaging to reduce shipping costs
Made of triple-wall 1100#/ECT-90 TW corrugated material for extra strength
Economical storage option over plastic and metal containers
Triple-wall configuration includes three layers of corrugated fluting sandwiched between four sheets of fiberboard
Ideal for retail storage and displays
Great for shipping and storing raw materials such as cloth, plastic pellets, corn, flour and other dry materials, as well as larger odd-sized items like exercise equipment or machinery
Half-slotted box can be used with compatible lid
Can be used as a collection bin for recyclables, scraps and other refuse
Reusable and recyclable
Boxes are shipped flat
Proudly Made in the USA

Box Strength

Our corrugated boxes feature a box strength rating, such as #200/ECT-32B.

The #200 refers to the Mullen Bursting Test rating which measures the bursting strength of the corrugated linerboard. For example, a box rated 200# can withstand 200 lbs. per square inch of force applied to the linerboard on the face of the carton.
ECT-32 refers to the Edge Crush Test (ECT) rating. This number indicates the force the load bearing edges can withstand before they buckle, usually measured in lbs. per lineal inch.
B refers to the flute strength. Flutes are the middle layer of the corrugated board that is structured in a wave pattern. The flute strength may not be included in these ratings.

The Mullen Test box criteria is better suited for the protection of heavier contents while the Edge Crush Test box is a better indication of good stacking characteristics.

Box Measurements

Box measurements are always expressed in three dimensions (Length x Width x Depth) and always in that specific sequence. These measurements always relate to the interior dimensions of the box.

The length and width are the opening dimensions of the box, and the length is always the larger of the two (unless they are equal).
The depth is how far you can reach into the box, and is the distance measured perpendicular to the length and width.

When measuring your box always leave space on all sides and above and below product for cushioning, such as bubble cushioning or loose fill. Our guide to box types can help you choose which is best for shipping for products.

Material:

Corrugated Cardboard is typically comprised of a fluted or zig-zag paperboard layer sandwiched between two stiff boxboard layers. Used in the manufacture of shipping cartons, corrugated material offers increased reinforcement to protect box contents from damage. Corrugated cardboard material is offered in single-face and single-wall configurations. For added strength, double- and triple-wall configurations are available. The fluted layer can also vary according to flute depth and number of flutes per foot.

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility. The Cary Company does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer’s selection and use of containers, container and label dimensions, and/or closures supplied by us.

Additional Information

More Information
Color	Kraft
Material	Corrugated
Box Strength	1100#/ECT-90 TW
Wall Construction	Triple Wall
Box Type	Gaylord
Dimensions	48″ L x 40″ W x 24″ H
Case Pack	5 ea.
Case Weight	102.2 lbs.
Case Dimensions	88″ L x 64″ W x 1″ H
Pallet Pack	30 ea. (6 Cases)
Pallet Weight	613.2 lbs.
Pallet Dimensions	40″ L x 48″ W x 60″ H
Weight	20.44 lbs.
Country of Manufacture	United States
Note:	Lid sold separately.
