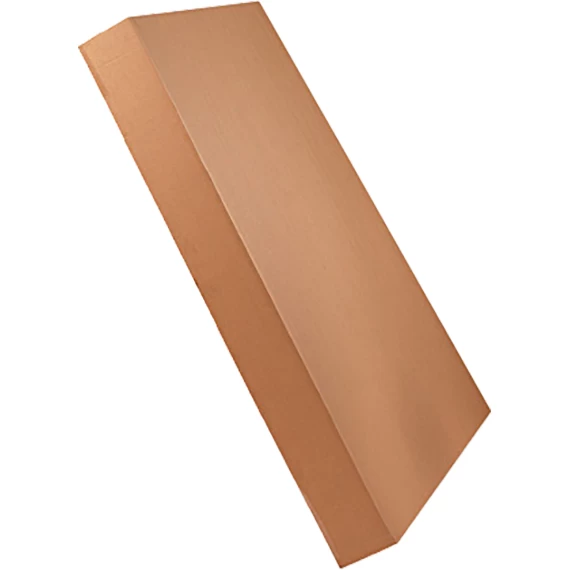

This 49-1/4″ L x 24-1/4 W x 4″ H carton lid is designed for 48″ L x 24″ W heavy duty, triple-wall corrugated gaylord boxes. This lid is made of durable 275#/ECT-44 corrugated material, which is 40 percent stronger than standard corrugated material. This cover helps consolidate multi-piece items as well as irregularly shaped equipment, such as exercise equipment or machinery. Ideal for both shipping and storage purposes, these reusable and recyclable lids offer an economical alternative to plastic or metal container and lid combinations.

Key benefits:

Made of heavy duty 275#/ECT-44 corrugated material
Helps contain bulk product, multi-piece items or large, bulky loads
Ideal for both shipping and storage applications
Lids are compatible with 48″ L x 24″ W triple-wall corrugated gaylord containers
Reusable and recyclable
Proudly Made in the USA

Box Strength

Our corrugated boxes feature a box strength rating, such as #200/ECT-32B.

The #200 refers to the Mullen Bursting Test rating which measures the bursting strength of the corrugated linerboard. For example, a box rated 200# can withstand 200 lbs. per square inch of force applied to the linerboard on the face of the carton.
ECT-32 refers to the Edge Crush Test (ECT) rating. This number indicates the force the load bearing edges can withstand before they buckle, usually measured in lbs. per lineal inch.
B refers to the flute strength. Flutes are the middle layer of the corrugated board that is structured in a wave pattern. The flute strength may not be included in these ratings.

The Mullen Test box criteria is better suited for the protection of heavier contents while the Edge Crush Test box is a better indication of good stacking characteristics.

Box Measurements

Box measurements are always expressed in three dimensions (Length x Width x Depth) and always in that specific sequence. These measurements always relate to the interior dimensions of the box.

The length and width are the opening dimensions of the box, and the length is always the larger of the two (unless they are equal).
The depth is how far you can reach into the box, and is the distance measured perpendicular to the length and width.

When measuring your box always leave space on all sides and above and below product for cushioning, such as bubble cushioning or loose fill. Our guide to box types can help you choose which is best for shipping for products.

Material:

Corrugated Cardboard is typically comprised of a fluted or zig-zag paperboard layer sandwiched between two stiff boxboard layers. Used in the manufacture of shipping cartons, corrugated material offers increased reinforcement to protect box contents from damage. Corrugated cardboard material is offered in single-face and single-wall configurations. For added strength, double- and triple-wall configurations are available. The fluted layer can also vary according to flute depth and number of flutes per foot.

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility. The Cary Company does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer’s selection and use of containers, container and label dimensions, and/or closures supplied by us.

Additional Information

More Information
Color	Kraft
Material	Corrugated
Box Strength	1100#/ECT-90 TW
Wall Construction	Triple Wall
Box Type	Gaylord
Dimensions	49-1/4″ L x 24-1/4″ W x 4″ H
Case Pack	5 ea.
Case Weight	9.1 lbs.
Case Dimensions	74″ L x 28″ W x 1″ H
Pallet Pack	280 ea. (56 Cases)
Pallet Weight	509.6 lbs.
Pallet Dimensions	40″ L x 48″ W x 60″ H
Weight	1.82 lbs.
Country of Manufacture	United States
Note:	Container is not included with this lid. Containers are sold separately.
