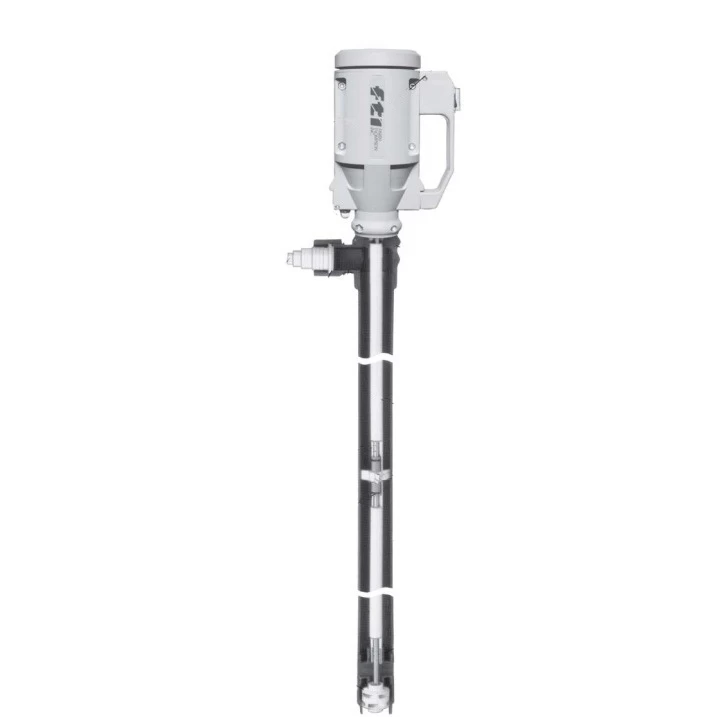

55 Gallon Drum Pump W/ 40″ PVDF Tube, 1/2 HP Air Motor, 330 Cps, 22 Gpm (PF Series)

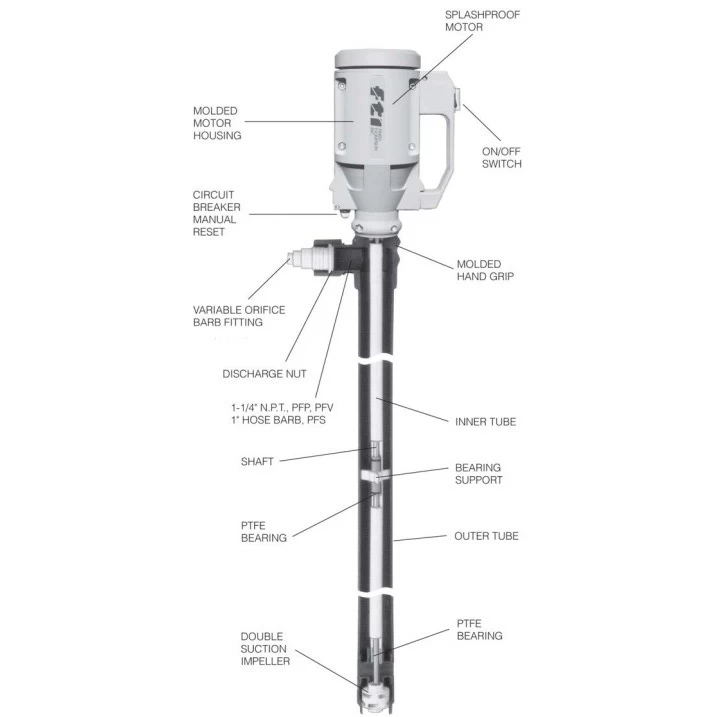

This is an air motor drum pump with a 2″ Dia. x 40″ L polyvinylidene difluoride (PVDF) tube with a max. flow of 22.0 gpm and a max. viscosity of 330 cps. This drum or barrel pump is ideal for light to medium viscosity liquids and high flow applications. Sealless and high performance, the barrel pump has dry run capability and a double suction impeller. The polyvinylidene difluoride (PVDF) construction can handle temperatures up to 120° F and offers durability and good chemical resistance. The drum pump works with liquids with a maximum specific gravity of 1.83.

The air motor is non-electric and thus has a reduced possibility of explosion from igniting flammable material or combustibles during use allowing the motor to be a safer alternative than standard electric motors. Drum pumps are ergonomic as they can eliminate the need to lift containers during liquid transfer. The plastic tube is 40″ for use with 55 gallon drums and other similar-sized containers. The discharge connection is a variable orifice barb. Versatile for multiple applications across industries, the drum or barrel pump offers easy disassembly for cleaning.

Key benefits:

• On/Off Switch
• Non-electric air motor
• polyvinylidene difluoride (PVDF) pump tube construction
• Dry run capability
• For use with containers with less than 40″ depth
• Handles light to medium viscosity liquids (Max. Viscosity 330 cps)
• For use up to 120° F
• Max flow 22 gpm
