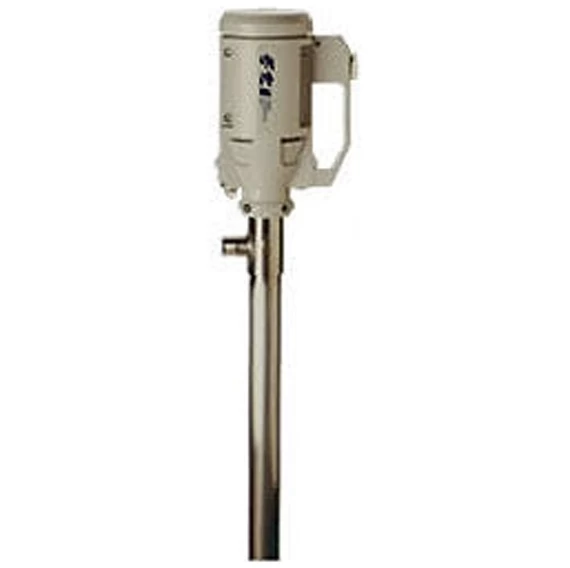

55 Gallon Drum Pump W/ 40″ Stainless Steel Tube, 1/2 HP ODP Motor, 200 Cps, 20 Gpm (TB Series)

Original price was: $390.00.Current price is: $95.99.

Satisfaction Guaranteed

Reliable Payments for Reliable Shopping

Your happiness, our mission.

100% High-Quality Guarantee

This is an open drip proof (ODP) motor drum pump with a 1.5″ Dia. x 40″ L stainless steel tube and a max flow of 20.0 gpm and max viscosity of 200 cps. This 55 gallon drum pump is suitable for low viscosity, mild corrosives, solvents, chemicals, etc. at temperatures up to 150° F. The max specific gravity of this drum pump is 1.40. With a smaller diameter, the drum pump tube fits smaller bung openings.

Open drip proof motors do not have a fan allowing these electric motors to be an economic alternative to totally enclosed fan cooled (TEFC) motors. Drum pumps are ergonomic as they can eliminate the need to lift containers during liquid transfer. The tube is 40″ for use with 55 gallon drums and other similar-sized containers. The discharge connection is a 1″ hose barb. This drum pump is lightweight and rated for continuous duty.

Key benefits:

Open drip proof (ODP) motor
Stainless steel pump tube construction
For use with containers with less than 40″ depth
Suitable for low viscosity, mild corrosives, solvents, chemicals, etc.
For use up to 150° F | 66° C
Max flow 20.0 gpm

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.

Additional Information

More Information
Material	Stainless Steel (316)
Weight	18 lbs.
Country of Manufacture	United States
Motor	ODP
Motor HP	1/2 HP
Power (VAC)	115
Flow Rate	20 gpm
Suction Tube Length	40″
Maximum Viscosity	200 CPS
Maximum Temperature	150° F
Note:	Image for series representation only. Actual model may vary. This pump may not include handle. For a secure, air-tight seal, a bung adapter ( Part #38B828) is needed (sold separately).
