55 Gallon Drum Pump W/40″ USDA Stainless Steel Tube, 1/4 HP TEFC Motor, 400 Cps, 10 Gpm (TT Series)

Original price was: $335.00.Current price is: $95.99.

Satisfaction Guaranteed

Reliable Payments for Reliable Shopping

Your happiness, our mission.

100% High-Quality Guarantee

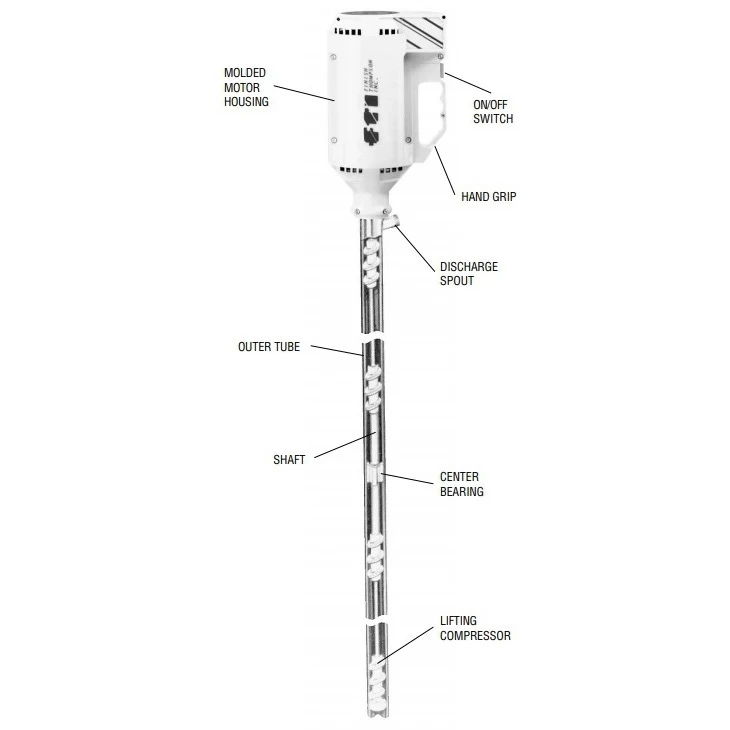

This is a totally enclosed fan cooled (TEFC) motor drum pump with a 1.5″ Dia. x 40″ L USDA approved 316 stainless steel tube and a max flow of 10.0 gpm and max viscosity of 400 cps. This 55 gallon drum pump is suitable for semi-viscous liquids at temperatures up to 200° F. The max specific gravity of this drum pump is1.80. The smaller tube diameter can fit smaller bung openings. This drum pump is ideal for sanitary and pure applications with the ability to handle many flammables, corrosives, etc.

The TEFC motor offers increased protection against dirt and moisture compared to open electric motors as it does not allow outside air to circulate freely throughout the interior of the motor. These motors tend to have a longer lifespan compared to open drip proof (ODP) motors. Drum pumps are ergonomic as they can eliminate the need to lift containers during liquid transfer. The stainless steel tube is 40″ for use with 55 gallon drums and other similar-sized containers. The discharge connection is a 1″ hose barb. This sealed drum pump is a USDA sanitary construction making it ideal for pure applications.

Key benefits:

Totally enclosed fan cooled (TEFC) motor
USDA approved 316 stainless steel tube construction
For use with containers with less than 40″ depth
Suitable for semi-viscous liquids & sanitary and pure applications
For use up to 200° F | 66° C
Max flow 10.0 gpm

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.

Additional Information

More Information
Material	Stainless Steel (316)
Weight	28 lbs.
Country of Manufacture	United States
Motor	TEFC
Motor HP	1/4 HP
Power (VAC)	115
Flow Rate	10 gpm
Suction Tube Length	40″
Maximum Viscosity	400 CPS
Maximum Temperature	150° F
Note:	Image for series representation only. Actual model may vary. This pump may not include handle. For a secure, air-tight seal, a bung adapter ( Part #38B828) is needed (sold separately).
