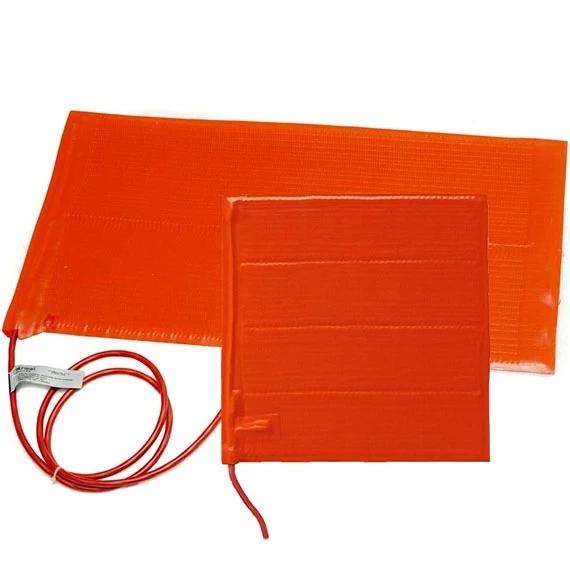

BriskHeat® 24″ X 36″ Heavy-Duty Silicone Rubber Heating Blanket For Metal W/Adhesive Backing, 120V, 2160W

Heavy-Duty Silicone Rubber Heating Blankets

Many industrial heating applications require heaters with the ability to resist moisture, chemicals and abusive environments. These same applications also require rapid heat-up, steady temperature maintenance, and uniform heat distribution. For conditions such as these, BriskHeat® Silicone Rubber Heating Blankets are the best products available.

Key Benefits:

• Silicone rubber heating blankets are an extremely versatile and thin electric surface heater with a variety of applications across many industries.
• Low profile heater design is ideal for heating surfaces like tanks, hoppers, conveyors, silos, etc.
• Suitable for a wide range of environments
• Moisture and chemical resistant
• Hazardous-area approved model option
• Silicone rubber provides exceptional durability and longevity.
• Moisture, chemical and radiation resistant silicone rubber.
• Available with industrial strength pressure sensitive adhesive backing for easy installation.
• Patented grounded heating element for your safety meets NEC 427.23

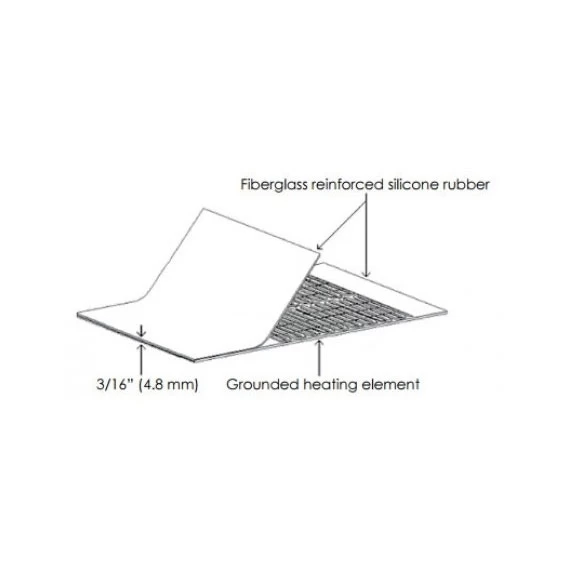

• Heating element is laminated between two layers of 20mil fiberglass reinforced silicone rubber.
• Optional high-limit thermostat to protect the heater and the contents being heated.

Specifications:

• Uniform Heat Distribution: Up to 450°F (232°C)
• Standard power density: 2.5 W/in² (0.004 W/mm²)
• Minimum exposure temperature: -60°F (-51°C)
• Maximum exposure temperature: 450°F (232°C)
• Dielectric strength: Over 2000 volts
• Silicone density: 21.7oz/yd² (736g/m²) per layer
• Electrical power leads: 48″ (1219mm) standard length with bare wire leads
• Voltage options: single phase 120, 208, 240, 277, 480, or 600VAC
• Bare wire connection (plug not included)
• Temperature controller required

Applications:

• Viscosity and temperature control
• Freeze protection
• Storage tanks
• Hoppers
• Enclosures / control panels
• Silos
• Conveyors
• Presses
• Vats
• Tank trucks
• Low temperature ovens
• Wine fermentation tanks
