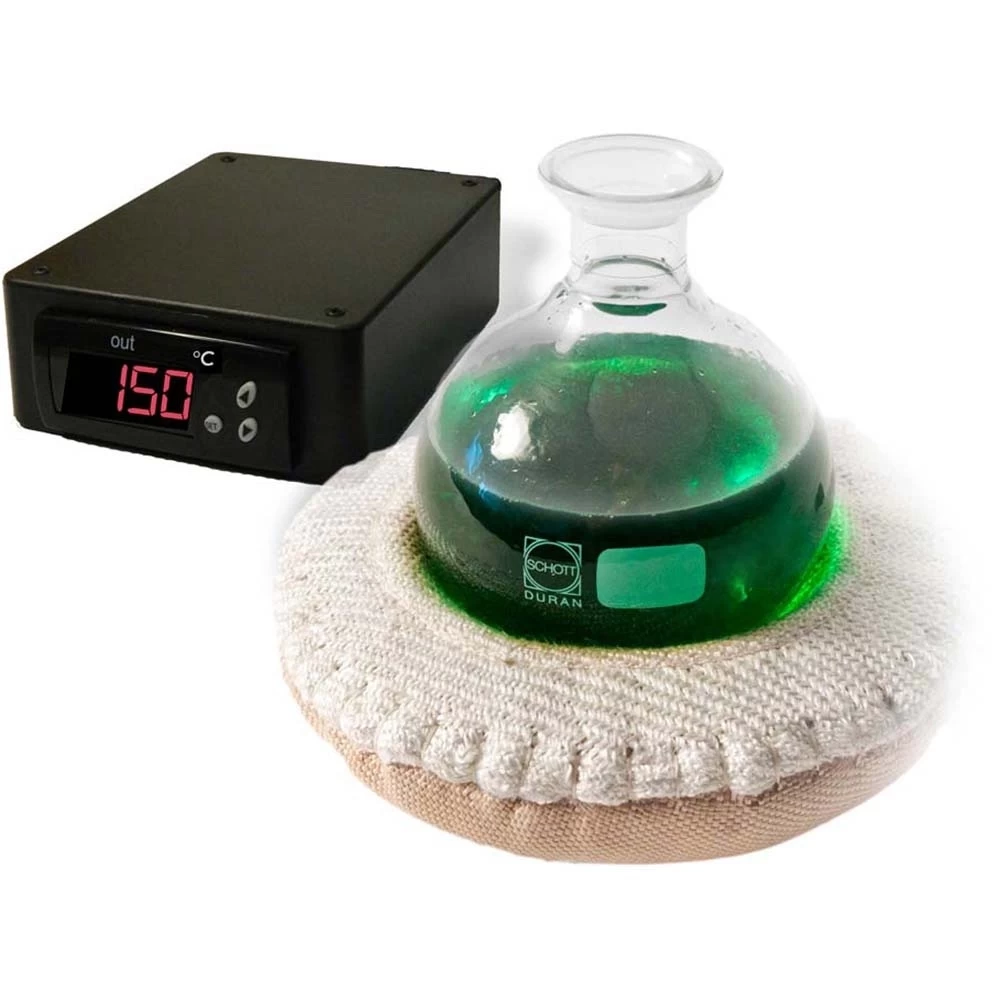

BriskHeat® 250 Ml Lower Hemispherical Heating Mantle W/SDC (° F) Temperature Controller, K-Type Sensor

19BT76 is a lower hemispherical heating mantle and SDC temperature controller with digital Fahrenheit display and K-Type thermocouple designed to heat 250 ml round bottom glass flasks. Great for use with basket ring stands, this low-watt density heating mantle is an ideal alternative to traditional Bunsen burners. The knitted heating element is capable of temperatures up to 842° F (450° C). SDC benchtop digital controllers are easy to use and programmable with a self-contained, plug-and-play design.

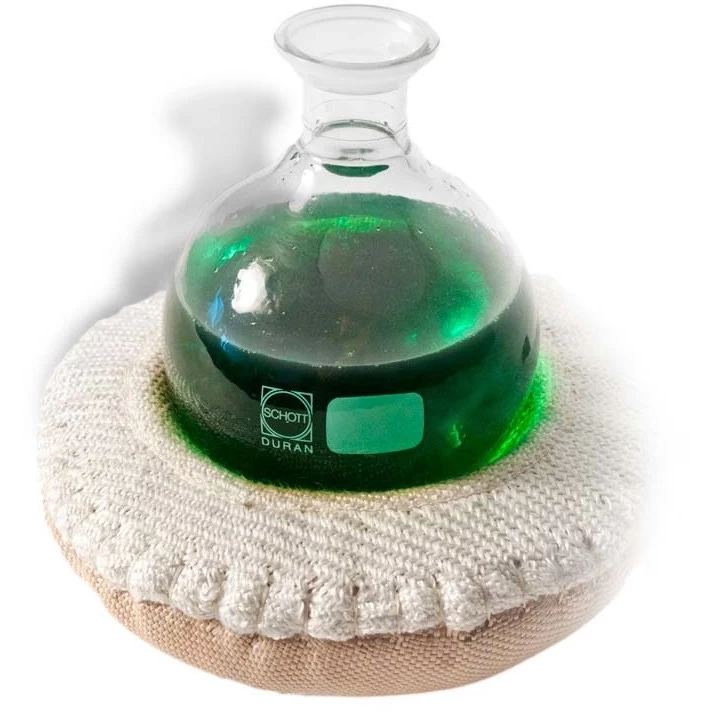

About Lower Hemisphere Heating Mantles
The Cary Company’s heating mantles offer uniform heat distribution for round-bottom flasks. Lower hemispherical heating mantles are an excellent alternative to heating methods with an open flame such as a Bunsen burner.

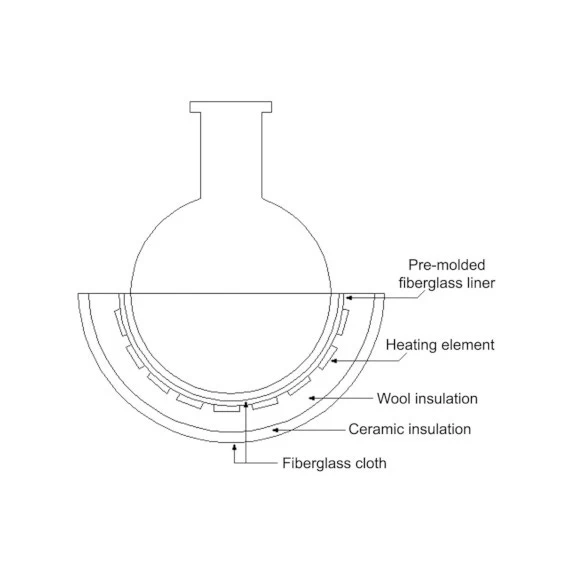

These heating mantles feature a uniform, low-watt density knitted and braided heating element capable of temperatures up to 842&deg F (450° C). The multi-stranded resistance wire offers increased durability and flexibility. Lower hemispherical heating mantles are ideal for use with a basket ring stand.

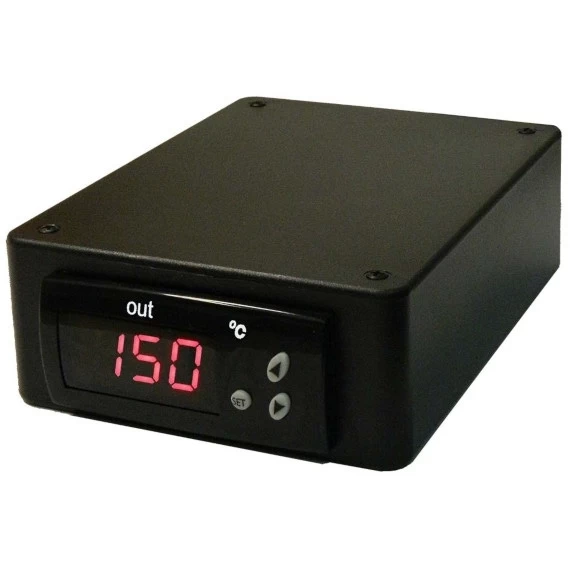

About BriskHeat® SDC Benchtop Digital Temperature Controllers
BriskHeat® SDC benchtop digital temperature controllers are affordable and compact controllers for a wide range of general-purpose heating applications. Ideal for applications requiring automatic control, these digital controllers are easy to use and programmable with a self-contained, plug-and-play design.

SDC temperature controllers feature password protection for additional security and a sensor break operation option. These controllers have an audible alarm that can be programmed for high or low range. Models come with either a Fahrenheit or Celsius display. The Fahrenheit models offer a temperature control range from 32° F to 999° F and the Celsius models have a 0° C to 700° C. Accuracy is +/- 1% full span.

Each benchtop digital temperature controller comes with a factory installed sensor input. Thermocouple options include a Type-J or Type-K sensor. These benchtop temperature controllers are ideal for indoor use with an operating temperature range of 32° F to 158° F and a storage range of -4° F to 176° F. Relative humidity should be less than 80% in non-condensing temperatures.

Key benefits

• Heating mantle molded to fit round-bottom flasks
• Low watt density
• Ideal for use with basket ring stand
• Heating element features multi-stranded resistance wire for durability and flexibility
• Mantle capable of temperatures up to 842° F | 450° C
• Compact size
• On/Off control
• Factory installed J-type or K-type thermocouple sensor
• Upper & lower limits of the setpoint can be adjusted
• 3″ (76mm) power leads with twist-lock plug that connects into a 4′ (1.2m) power cord with standard 2-prong power plug (NEMA 1-15)
