BriskHeat® 8 W/ft High-Temperature Constant-Wattage Heating Cable, Copper Braid (480V)

Original price was: $12.84.Current price is: $8.99.

Satisfaction Guaranteed

Reliable Payments for Reliable Shopping

Your happiness, our mission.

100% High-Quality Guarantee

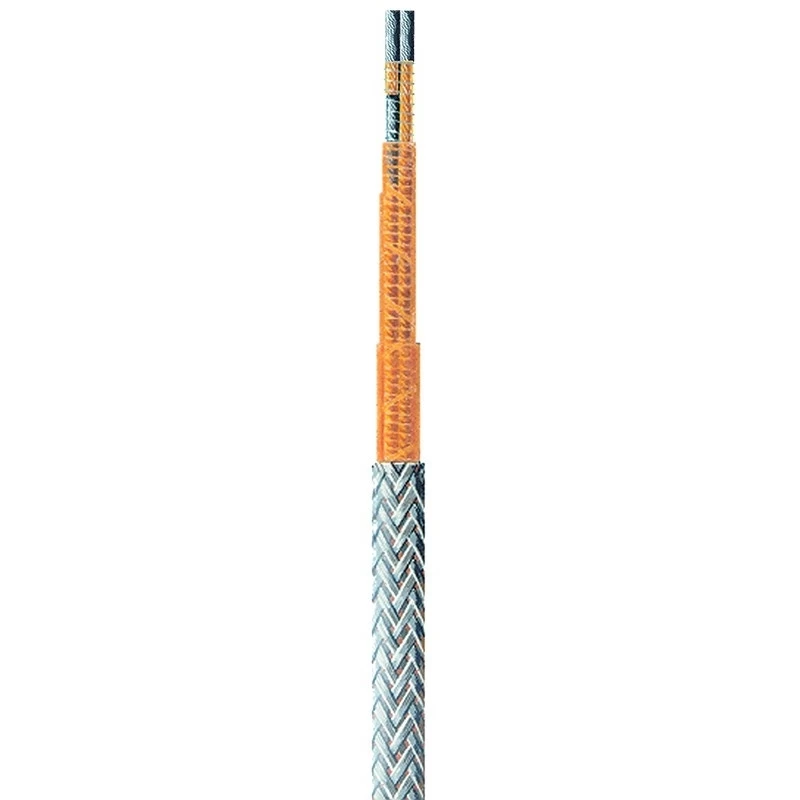

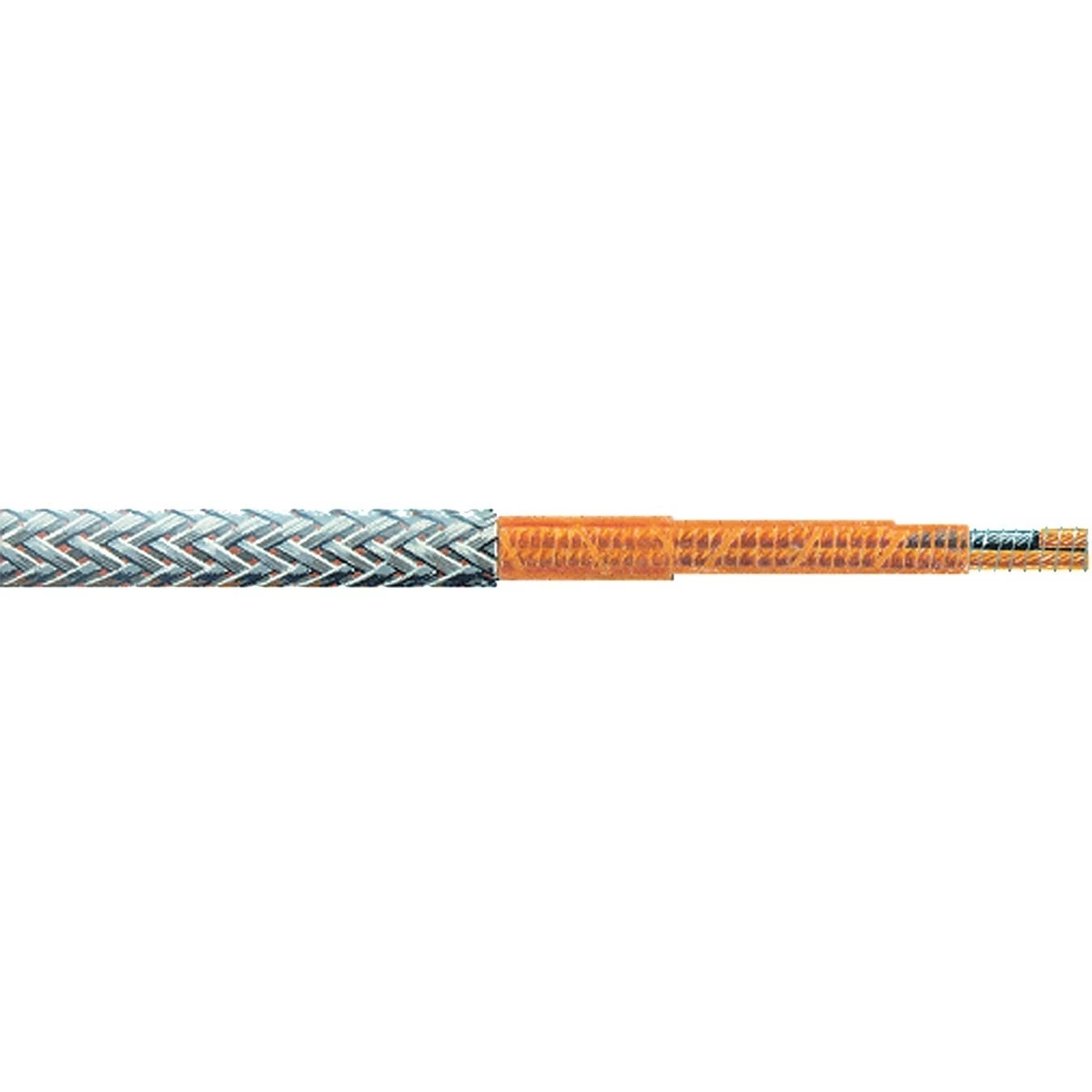

19BN63 is a high-temperature constant wattage heating cable with a tinned copper overbraid. This cable operates at 480 VAC with a cable type of 8 watts/ft, and can be cut to preferred length at the job site. The maximum exposure temperature is 500&deg F (260&deg C). Product is moisture, chemical, flame, and radiation resistant, making it great for temperature applications such as asphalt lines, viscosity control, nuclear environments, and more. Other cable types and voltages available upon request. This product requires a temperature controller for safe operation.

Key benefits:

Power remains constant regardless of temperature
Dimensions: 0.15″ x 0.25″ (4mm x 6mm)
30lb (14kg) per 500-foot (152m) spool
8 W/ft (26 W/m)
12AWG bus wires
Ideal for long runs
Tension wrapping holds resistance wire in place, even under extreme bending

Downloads:

Specification Sheet

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.

Additional Information

More Information
Color	Silver
Voltage	480v
Wattage	8 W/ft
Weight	0.068 lbs.
Case Pack	50′ Roll
Case Dimensions	16x16x12
Country of Manufacture	United States
Manufacturer	BriskHeat®
Model	KKCAB8480
Note:	*Quantity is by the foot, minimum of 50 ft.
