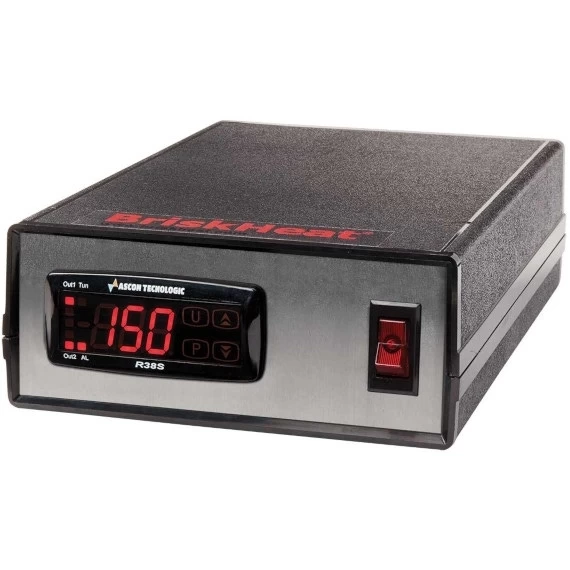

BriskHeat® SDX Benchtop Digital PID Temperature Controller, 125v, PT100/RTD Sensor, 3-Prong NEMA 5-16 Plug

19B638 is a 110 – 125 VAC BriskHeat® SDX on/off benchtop PID controller with a PT100/RTD sensor and a 3-prong NEMA 5-15plug. PID temperature controllers provide accurate control across a wide temperature range. This digital controller is programmable in ° F and ° C. The plug-and-play design is affordable and compact. This controller is ideal for indoor use and includes a C14 plug for wiring to heater.

About BriskHeat® SDX Benchtop Digital PID Temperature Controllers
BriskHeat® SDX benchtop digital temperature controllers are affordable and compact controllers ideal for a laboratory environment or similar applications. Proportional, integral, derivative (PID) controllers feature a control loop mechanism which employs feedback and allows for continuously modulated control. Proportional is the actual variance in temperature, integral is the previous variance and derivative is the predicted future variance. Using a formula, the controller can maintain a more accurate actual temperature to match the set temperature. This autotuning means that the PID controller is ideal for more sensitive applications where the actual temperature needs to more closely match the set temperature.

SDX temperature controllers feature a 4-key touch pad interface and a plug-and-play design to allow the controller to be easy to use. These controllers are programmable for On/Off control as well as programmable in Fahrenheit (° F) and Celsius (° C). The benchtop design allows the device to be versatile to set up and move wherever it is needed. SDX controllers’ environmental exposure should be limited to indoor use. Intended operating range is from 32° F to 111° F (0° C to 44° C). Storage range is from -4° F to 158° F (-20° C to 70° C). This PID controller should not be exposed to a relative humidity above 95%.

These PID controllers have an audible alarm that is programmable for high or low absolute or deviation. The temperature control range is from 0° F to 999° F and 0° C to 999° C. Our PID controllers have an accuracy of +/- 0.5% span. Each controller includes a C14 plug for wiring to heater. The Cary Company offers multiple sensor and power input options to meet your specific needs.

PID controllers can be used with many cloth and silicone heating blanket options as well as tapes, cables, heating mantles and more. Typical applications include: research and development, laboratory testing, food processing, emulsifying cosmetic components, industrial heating and drying, adhesive curing, gas handling, viscosity control and more. These controllers are ideal for a variety of industries such as the semiconductor industry, agricultural, laboratory, composite, chemical, food and beverage, plastics and more.

Key benefits

• Max amp load: 15 Amp North America; 10 Amp Europe
• Temperature control range: 0° F to 999° F and 0° C to 999° C
• Programmable in ° F and ° C
• 4-key touch pad interface
• Power On/Off button
• Advanced PID control
• Plug-and-play, benchtop design
• 5′ temperature sensor
• Includes C14 plug for wiring to heater
