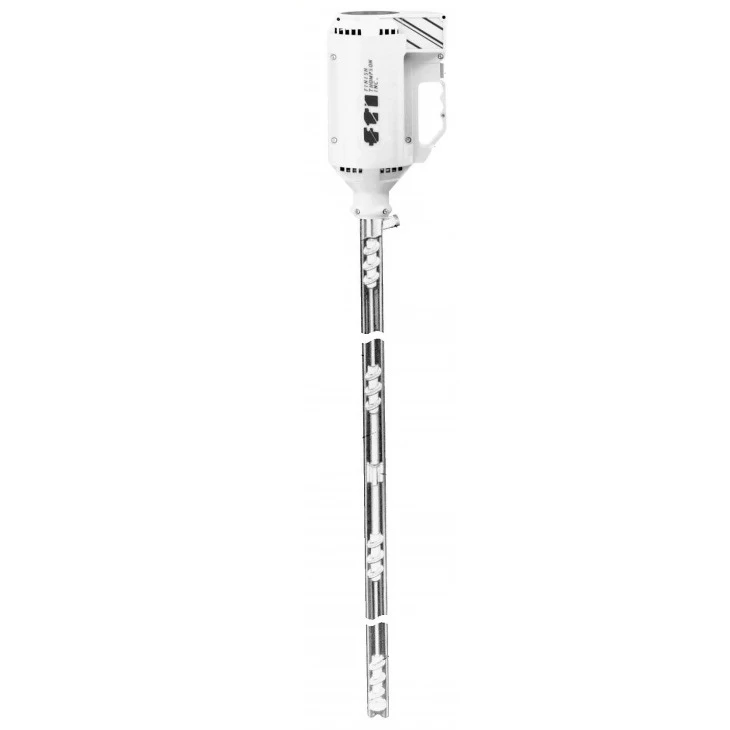

IBC Tote Pump W/48″ CPVC Tube, 1/2 HP Air Motor, 2000 Cps, 16 Gpm (TT Series)

This is an air motor tote pump with a 1.63″ Dia. x 40″ L chlorinated polyvinyl chloride (CPVC) tube and a max flow of 16.0 gpm and max viscosity of 2000 cps. This 55 gallon drum pump is suitable for semi-viscous liquids up to 150° F and can handle many corrosives, flammables, etc. in pure applications. The max specific gravity of this sealed tote pump is 1.80. With a smaller diameter, this tote pump tube can fit smaller bung openings.

The air motor is non-electric and thus has a reduced possibility of explosion from igniting flammable material or combustibles during use allowing the motor to be a safer alternative than standard electric motors. Tote pumps can provide container-to-container liquid transfer when the tote is too heavy to lift. The CPVC plastic tube is 48″ for use with 275 gallon IBC totes other similar-sized containers. CPVC has good chemical resistance allowing for this pump to be chemically compatible with a wide range of liquids. The discharge connection is a 1″ hose barb. This tote pump is sealed making it ideal for pure applications.

Key benefits:

• Non-electric air motor
• CPVC plastic tube
• Sealed unit
• For use with containers with less than 48″ depth
• Suitable for semi-viscous liquids & pure applications
• For use up to 150° F | 66° C
• Max flow 16.0 gpm
