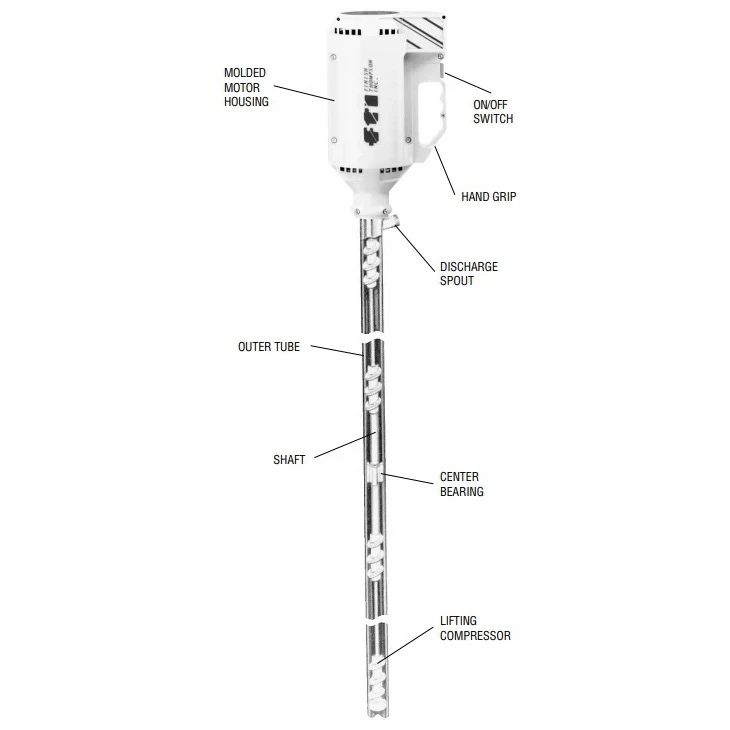

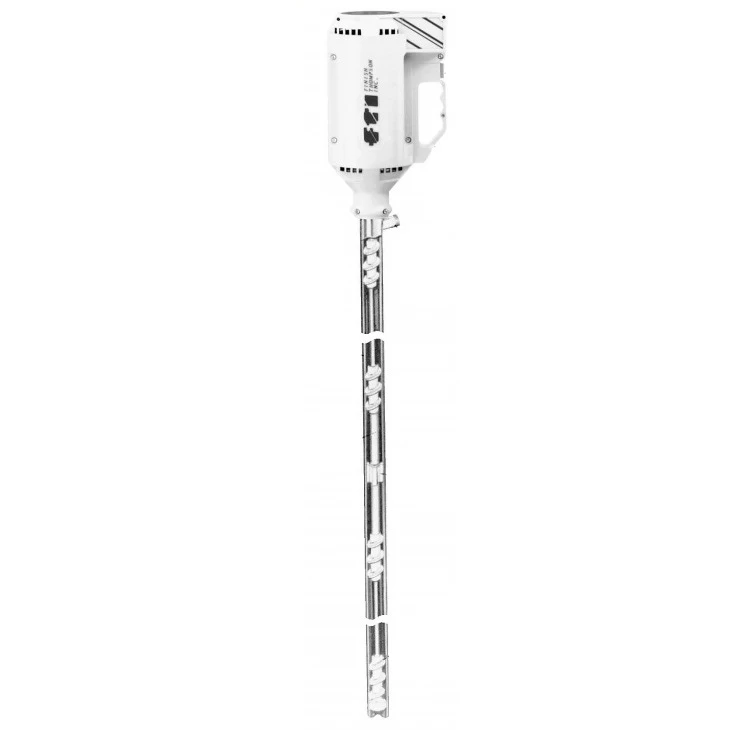

IBC Tote Pump W/48″ CPVC Tube, 1/4 HP X-Proof Motor, 400 Cps, 7 Gpm (TT Series)

This is an explosion proof (X-Proof) motor tote pump with a 1.63″ Dia. x 48″ L chlorinated polyvinyl chloride (CPVC) tube and a max flow of 7.0 gpm and max viscosity of 400 cps. This tote pump is suitable for semi-viscous liquids up to 150° F and can handle many corrosives, flammables, etc. in pure applications. The max specific gravity of this sealed tote pump is 1.80. With a smaller diameter, this tote pump tube can fit smaller bung openings.

The explosion proof motor performance is reduced to 7.0 gpm in order to reduce static electricity during use for additional safety when mixing potentially volatile liquids. Tote pumps can provide container-to-container liquid transfer when the tote is too heavy to lift. Tote pumps can provide container-to-container liquid transfer when the tote is too heavy to lift. The plastic tube is 48″ for use with 275 gallon IBC totes and other similar-sized containers. CPVC has good chemical resistance allowing for this pump to be chemically compatible with a wide range of liquids. The discharge connection is a 1″ hose barb. This tote pump is sealed making it ideal for pure applications.

Key benefits:

• Explosion proof (X-Proof) motor
• CPVC plastic tube
• Sealed unit
• For use with containers with less than 48″ depth
• Suitable for semi-viscous liquids & pure applications
• For use up to 150° F | 66° C
• Max flow 7.0 gpm
