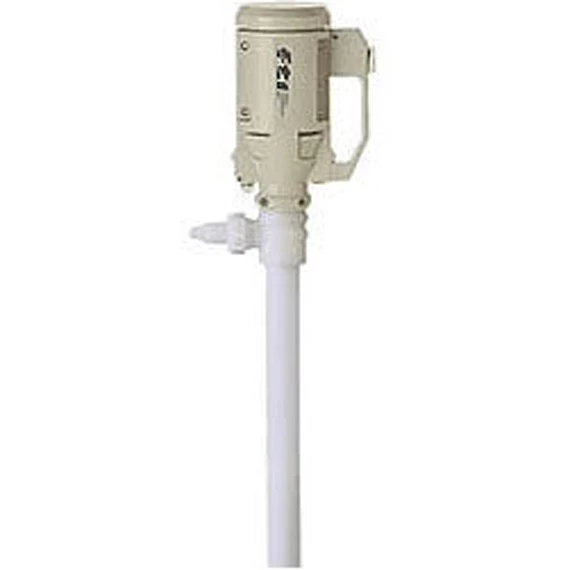

IBC Tote Pump W/ 48″ Pure PVDF/PP Tube, 1/2 HP Air Motor, 200 Cps, 20 Gpm (TB Series)

This is an air motor tote pump with a 1.66″ Dia. x 48″ L pure polypropylene and pure PVDF tube and a max flow of 20.0 gpm and max viscosity of 200 cps. This tote pump is suitable for low to medium viscosity chemicals such as bleach, nitric acids, hydrochloric acids, sulfuric acids, etc. at temperatures up to 150° F. The max specific gravity of this drum pump is 1.40. With a smaller diameter, this tote pump tube can fit smaller bung openings.

The air motor is non-electric and thus has a reduced possibility of explosion from igniting flammable material or combustibles during use allowing the motor to be a safer alternative than standard electric motors. Tote pumps can provide container-to-container liquid transfer when the tote is too heavy to lift. The plastic tube is 48″ for use with 275 gallon IBC totes and other similar-sized containers. The discharge connection is a 1″ hose barb. This tote pump is lightweight and rated for continuous duty.

Key benefits:

• Non-electric air motor
• Pure polypropylene and pure PVDF pump tube construction
• For use with containers with less than 48″ depth
• Suitable for low to medium viscosity chemicals such as bleach, nitric acids, hydrochloric acids, sulfuric acids, etc.
• For use up to 150° F | 66° C
• Max flow 20.0 gpm
