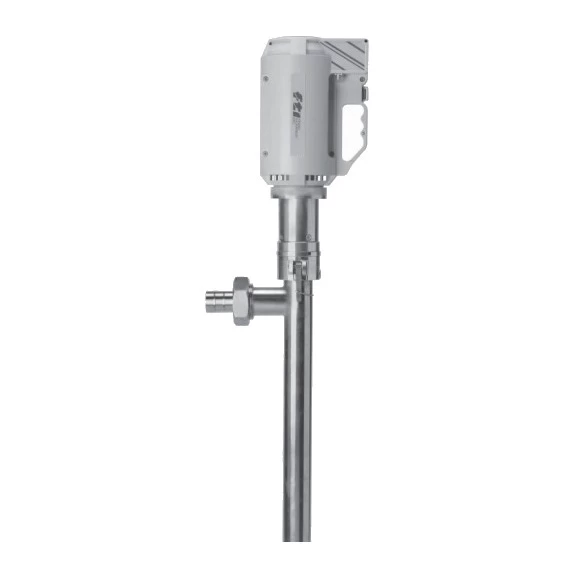

IBC Tote Pump W/48″ Stainless Steel Tube, 1 HP TEFC Motor, 15,000 Cps, 7 Gpm (HVDP Series)

This is a 1 HP totally enclosed fan cooled (TEFC) motor tote pump with a 2″ Dia. x 48″ stainless steel tube and a max flow of 7 gpm and max viscosity of 15,000 cps. This low reduction IBC tote pump is ideal for transferring high viscosity materials up to 180° F as it features a progressive cavity design. A planetary gear set reducer allows this pump to provide a smooth and non-pulsating flow. Typical applications include paints, adhesives, oils, etc. in the chemical and coatings industries. The max specific gravity is 1.80.

The TEFC motor offers increased protection against dirt and moisture compared to open electric motors as it does not allow outside air to circulate freely throughout the interior of the motor. These motors tend to have a longer lifespan compared to open drip proof (ODP) motors. Tote pumps can provide container-to-container liquid transfer when the tote is too heavy to lift. The 316 stainless steel tube is 48″ for use with 275 gallon IBC totes and other similar-sized containers. Stainless steel is ideal for more flammable such as solvents compared to plastic alternatives. The discharge connection is larger than traditional tote pumps and is a 2″ hose barb for high viscosity liquids. This tote pump offers quick disassembly for ease of cleaning due to its unique camlock feature.

Key benefits:

• Totally enclosed fan cooled (TEFC) motor
• 316 stainless steel tube
• Includes 12′ (3.5m) heavy duty cord, circuit, internal cooling fan and built-in on/off switch
• Buna stator material
• 5:1 speed reducer
• For use with containers with less than 48″ depth
• Suitable for high viscosity liquids
• For use up to 180° F | 82° C
• Max flow 7 gpm
