Industrial Deep Freeze Chiller, 1 Ton, 12,000 BTU/hr Capacity

Deep Freeze Chiller, 1 ton (12,000 BTU/hr), 230V/1P/60hz

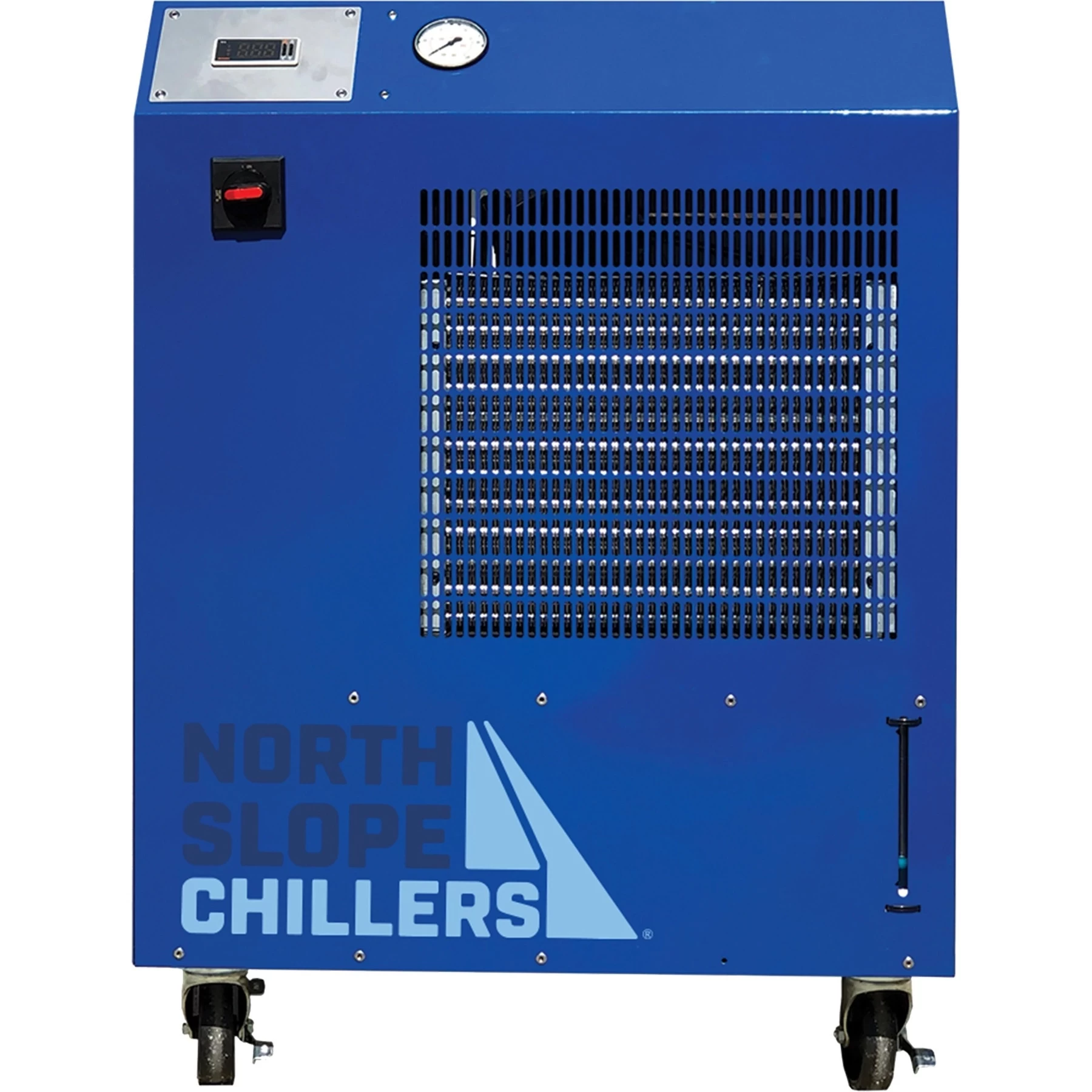

The 19BDF1 is a North Slope Chillers air cooled industrial deep freeze chiller used for indoor operation to protect materials from extreme humid conditions. The casters allow for easy transportation or movement with less work. This 1 ton stand-alone industrial chiller has a cooling capacity of 12,000 BTU/hr at rated conditions. It has a brazed plate heat exchanger and stainless steel reservoir with a 15 gallon capacity. The fluid temperature range is 10°F – 45°F. This innovative cooling system is suitable for various industries, such as manufacturing and is often used for process cooling.

Deep Freeze Chillers
Deep freeze chillers are commercial water chillers that provide the ultimate industrial chilling. They have insulated temperature components, which result in zero internal temperature loss. These fluid chillers also have many of the same qualities as the standard freeze chillers, such as a stainless steel reservoir. Industrial chillers are capable of chilling several containers at one time.

Key benefits:

• Protects materials against the heat and prevents material loss
• Stainless steel (SS) reservoir is of higher quality than similar chiller systems with plastic reservoirs
• Precise temperature control
• Voltage/Amps: 230/1/60Hz, 14A @ 230V/1
• 4 casters for easy mobility
• Ambient temperature: 40°F – 100°F (Ambient temperatures can be tuned to temperatures outside of noted range by the factory. Call for details.)
• Fluid temperature: 10°F – 45°F
• Pump: 4 GPM @ 50 PSI
• Inlet/outlet: 3/4″ NPT
• Capacity: 12,000 BTU/hr
• Refrigerant: R404a
• Reservoir capacity: 12 gallons
• Fluid: water/glycol only
• ETL certified
• One-year manufacturer’s warranty
• Proudly Made in the USA
