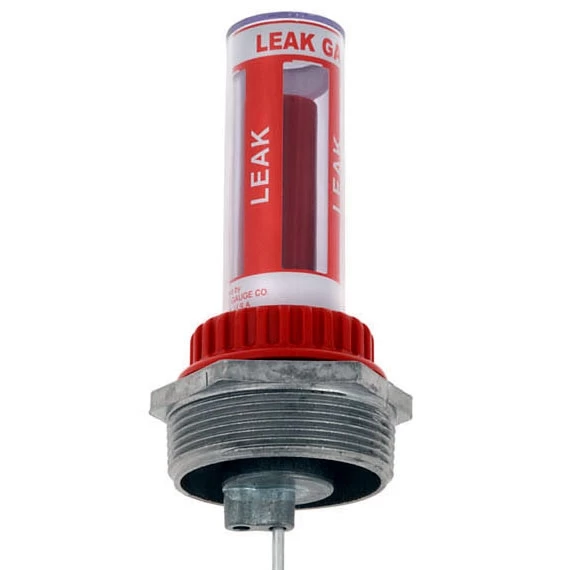

Top Mount Mechanical Leak Detection Gauge

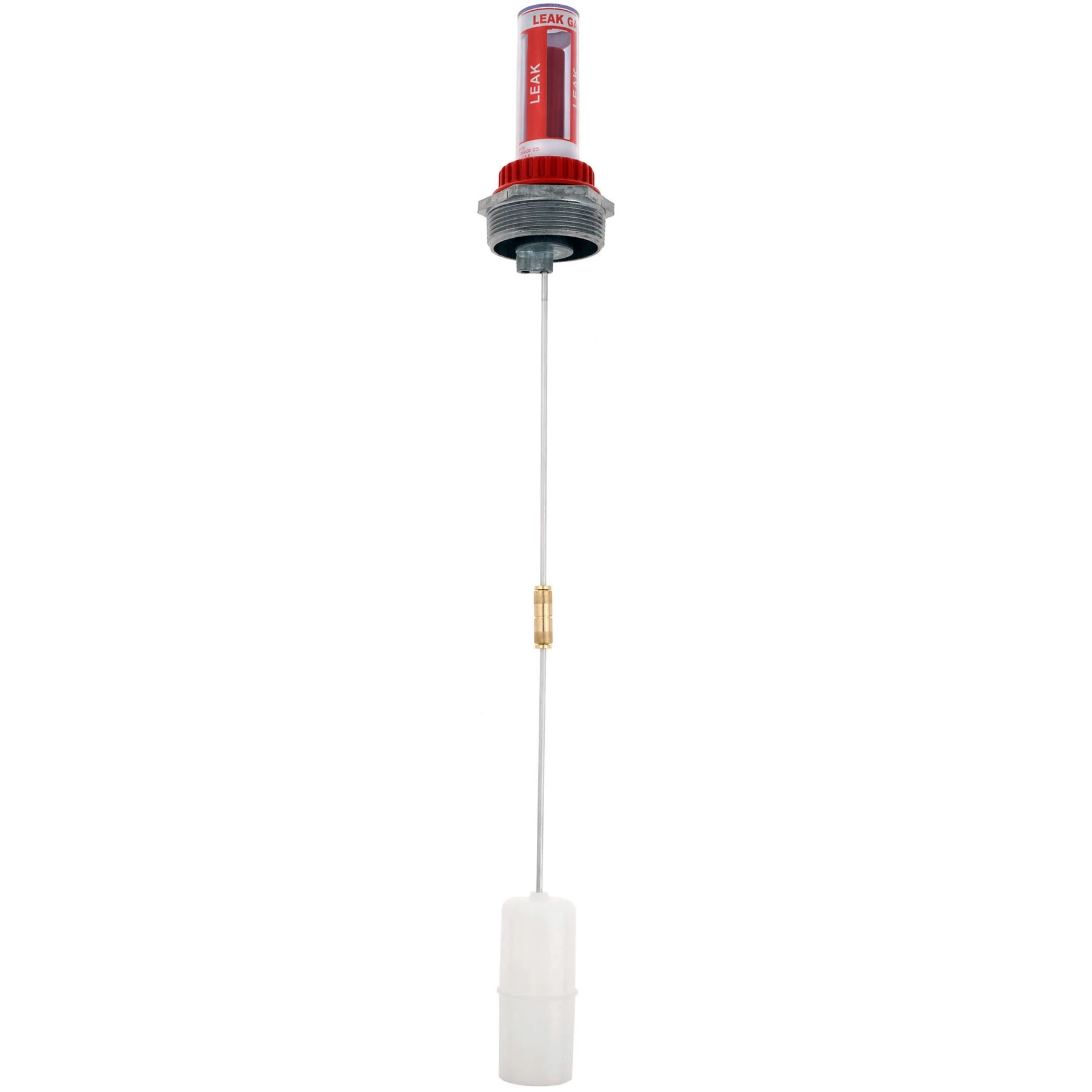

The Leak Type K-0.75 Gauge is a reliable, vertical type leak monitor used for detecting leaks in the annular/interstitial space of a double wall above ground containment tank (AST’s) with a 3/4″ NPS bung opening. Its simple mechanical design promotes durability, minimal upkeep, quick installation, and easy/inexpensive repairs. If you have a monitoring pipe or have a threaded fitting at the top of the interstitial space on a double wall containment tank, this monitor will thread right in. Any liquid seeping into the containment space will cause the float to rise which will provide a visual indication on top of the tank that there is liquid in the interstitial containment area.

Key benefits:

Designed to detect leaks in double wall containment systems, interstitial spaces, and monitoring pipes
Custom sizes from 6 inches to 170 inches
Available in 1.5″NPT opening for sizes 6″ to 76″
Available in 2″ NPT opening for sizes 6″ to 170″
Available in .75″ NPS opening for sizes 6″ to 76″
Simple and effective
Third party testing documents available
When ordering specify your size opening and exact tank depth, every gauge is made custom to fit your tank

Downloads:

Leak Detection Gauge Construction

Leak Detection Gauge Owners Manual

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility.

Additional Information

More Information
Gasket	Nitrile (Buna-N)
Country of Manufacture	United States
Model	Type K-0.75
Opening Size	3/4″ NPS
Rod Material	Galvanized Steel
Bushings Material	Aluminum
Float Material	HDPE
Calibration	Plastic Calibration
Note:	**Custom configure this product with the options below
