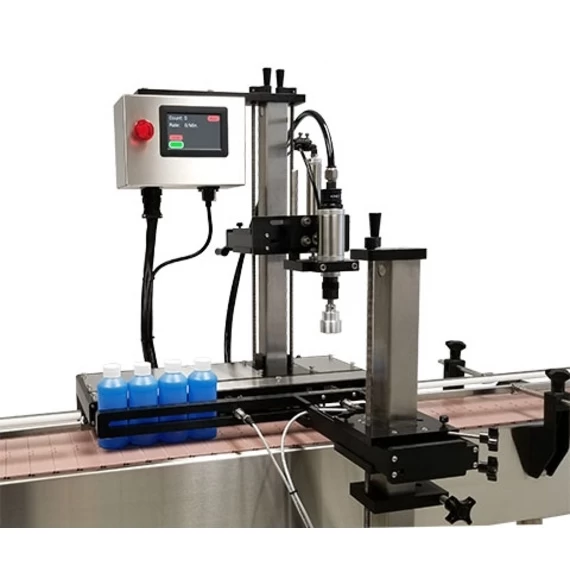

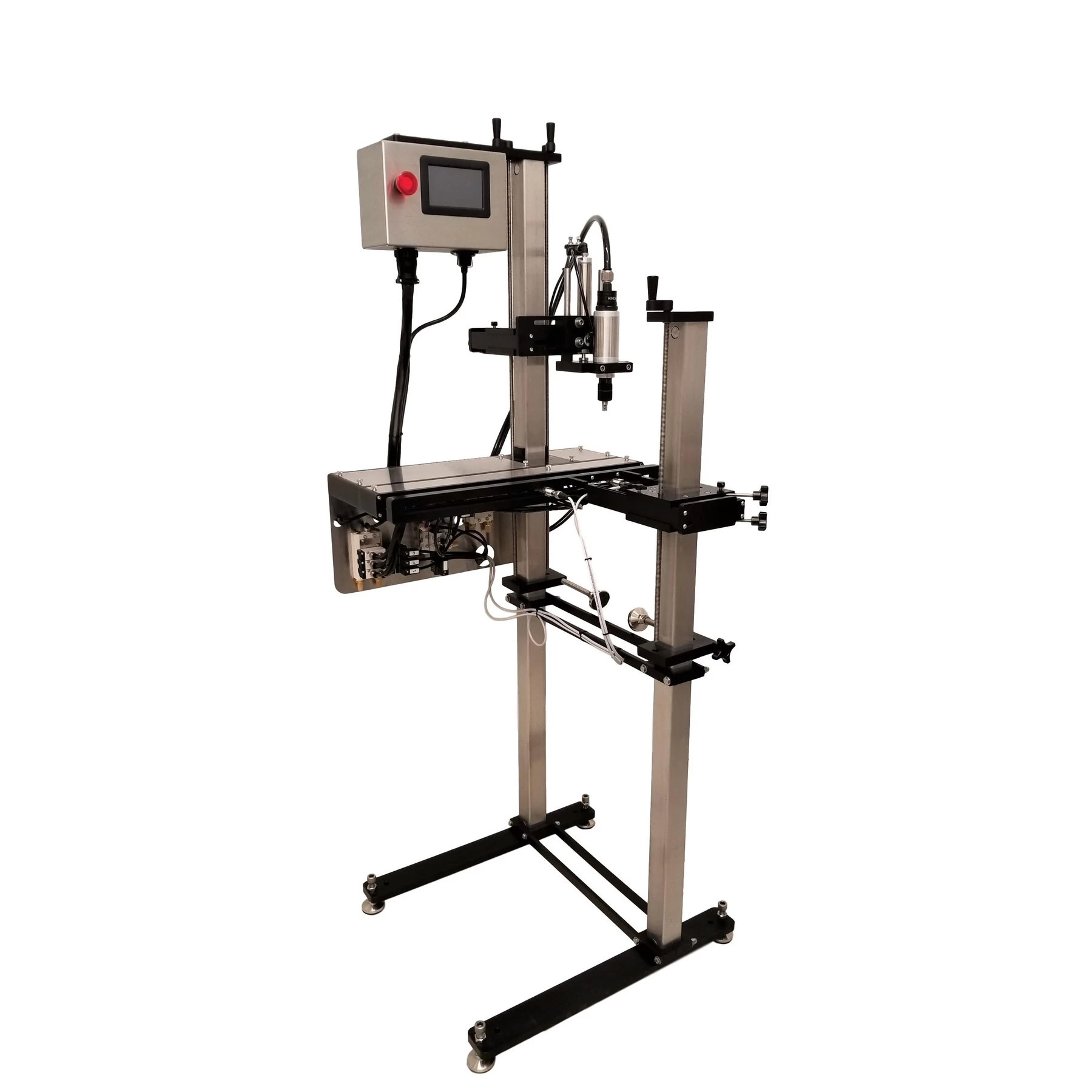

Pneumatic Automatic Bottle Capping Machine (10-130mm) Max Ht. 17″

This 26B2AM is a pneumatic automatic bottle capping machine that is set on to an existing conveyor and used to tighten caps onto bottles ranging from 10-130mm in diameter. It is capable of capping up to 35 bottles per minute. The machine operates on 50/60 Hz. with a torque range of 0-125 inch lbs. It can be used with bottles that have a maximum height of 17 inches. Automatic capping machines have a touchscreen display and navigation screen that can save capping programs to give the operator more control over the production. The machine can be used as a semi-automatic capping machine or automatic capping machine for various sectors, including the e-liquid, chemical, pharmaceutical, and food and beverage industry.

Superior Torque Accuracy
The Pneumatic Sutomatic Bottle Capping Machine is known for its torque accuracy. Repeatable torque accuracy provides businesses with efficient and consistent cost saving results that will leave customers satisfied with the final product.

Key Benefits:

• Applicable with plastic and metal threaded caps on plastic, glass, and metal containers
• Caps up to 35 bottles per minute
• Tightens caps from 10-130mm and accommodates bottles from 0.5-6.5 inches wide
• Torque range 0-125 inch lbs.
• Minimum bottle height of 1.5″
• Maximum bottle height of 17″
• Electrical requirements: 100-240 VAC, 50/60 Hz. Single Phase
• Easy to set up and adjust (comes with user guide and video tutorials)
• External torque adjustment dial
• Touchscreen display and navigation that displays real time production rate, including number of bottles capped
• Saves up to 3 capping programs
• Use as semi-automatic capping machine (operators place caps onto the bottles up stream of the capping machine) or automatic capping machine (a cap feeder can be installed upstream to preplace the caps onto the bottles)

Package Includes:

• Automatic Bottle Capping Machine
• Chuck with Inserted White Rubber Liner (for use with 38-46mm OD caps), actual liner sizes needs to be determined
• White Rubber Liner (for use with 38-46 mm OD caps), actual liner sizes needs to be determined

Sampling Process:

• Cap and bottle samples are tested on the bottle capping machine to ensure compatibility
• Upon request, video footage can be taken of the testing process using the customer provided samples. Recommended settings will be recorded to assist customers with a quick set up
• Samples must include contact info, 1 filled container with final product sample inside if possible, for each unique application (particularly if the container is clear and content is visible), 8 empty containers for up to five unique applications & 25-30 corresponding caps for each unique application

Shipping/Pricing Information:

• Domestic Orders with crate/pallet: 37″ L x 30″ W x 72″ H, International: 70″ L x 42″ W x 34″ H
• Total shipping weight is 300 lbs. for domestic and 310 lbs. for international (includes the product and pallet with crate)
• Crated – Can be lifted with a fork lift. The crate must ship upright at all times and cannot be laid on its side or tilted
• $250.00 USD for custom shipping crate when shipping domestic, $318.00 USD charge for the crate when shipping internationally
• If the container is less than 1-3/4″ H not including cap, the short bottle package which is $240.00 USD is required
• Additional parts required CE Mark for European Union – $625.00 USD
• Field Service Mark to sell into Canada $875.00 USD
