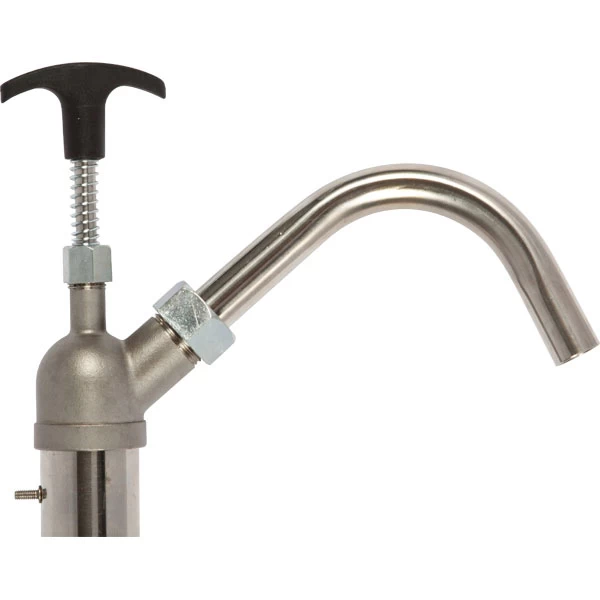

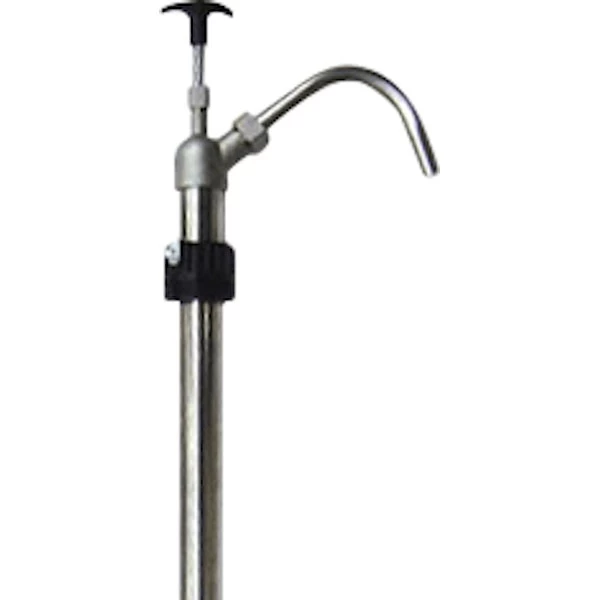

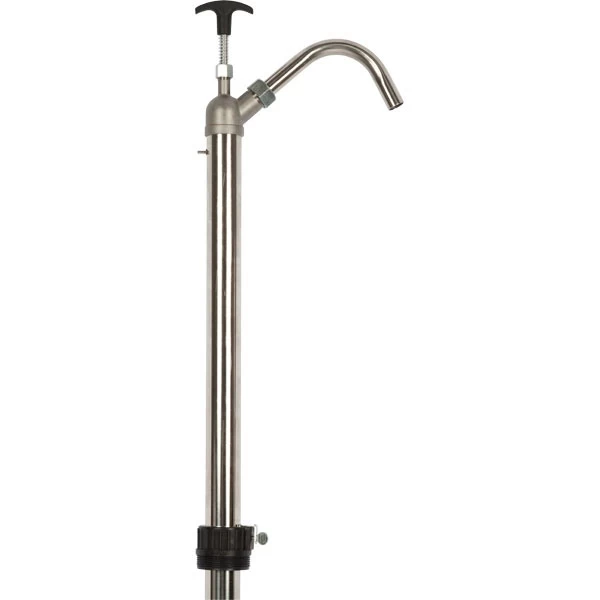

T-Handle Stainless Steel & PTFE Piston Drum Pump For 2″ NPS, 22 Oz. Stroke

Original price was: $132.74.Current price is: $92.92.

Satisfaction Guaranteed

Reliable Payments for Reliable Shopping

Your happiness, our mission.

100% High-Quality Guarantee

Pumps use mechanical action to move liquids, gases, or slurries (solids suspended in a liquid or gas). The mechanical action is categorized as either positive displacement (PD) or kinetic. PD pumps capture and release discrete amounts of flow into a chamber and then force it out. Some examples of PD pumps are fuel and oil pumps in cars, pumps in hydraulic systems, and bicycle pumps. Kinetic pumps move liquids, gases, or slurries by transferring energy from the pump’s movement to the flow. They use an impeller to draw the flow in, add energy to the flow, and move it through a volute (a spiral funnel through which the flow moves), and into the system. Some examples of kinetic pumps include centrifugal (the most common pump in industrial applications), in-line pumps, sump pumps, and suction pumps. Energy sources for all types of pumps include wind power, manual operation, electricity, and gasoline or diesel fuel.

Key benefits:

Item: Hand Operated Drum Pump
Action Type: Piston
Housing Material: Stainless Steel
Wetted Materials: Stainless Steel, PTFE
Discharge Tubing Material: Stainless Steel
Piston Material: PTFE
For Use With: Solvents and Photographic Chemicals
Ounces per Stroke: 4 to 20
Max. Viscosity: 2000 SSU
Inlet Size: 1″
Outlet Size: 21/32″ ID, 3/4″ OD
Discharge Tube Outlet ID Size: 5/8″
Discharge Tube Outlet OD Size: 3/4″
Discharge Tube Length: 7-1/2″
Suction Tube Length: 37″
Suction Tube Outlet O.D. Size: 1-1/2″
Metered: Yes
Adapter Type: Drum
Adapter Material: Polypropylene
Adapter Dia.: 2″
Features: Good Chemical Resistance
Includes: Bung Adapter, Repair Kit and Metering Kit
Max. Liquid Temp.: 140 Degrees F
Self-Priming: YES

Downloads:

Specification Sheet

Material:

Stainless steel 304 (SS304) has excellent corrosion resistance and weldability. SS304 has an oxidation resistance of 1600°F for intermittent service and 1690°F for continuous service. We have a collection of stainless steel 304 drums, power drill mixers, and filter vessels. Stainless steel 304 products, such as pans and cooking tools are common household products that people use on a daily basis.

Disclaimer:

This information has been provided as a general guide. It is the customer’s responsibility to select the proper container for product and application compatibility. The Cary Company does hereby disclaim any and all warranties, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose or use. We are not responsible for consequential damages arising from customer’s selection and use of containers, container and label dimensions, and/or closures supplied by us.

Additional Information

More Information
Color	Silver
Material	Stainless Steel (304)
Pallet Pack	20 ea.
Flow Rate	22 oz.
Neck Width	2″
Note:	*It is up to the customer/end user to determine the compatibility of the pump and the product being dispensed.
